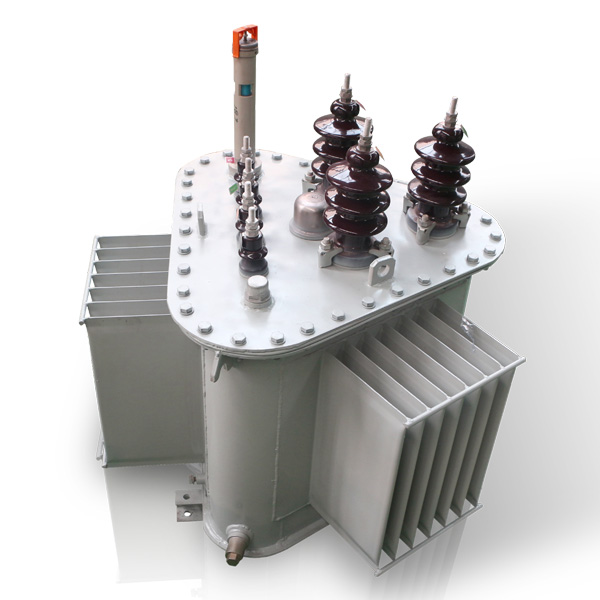

Triangle Dimensional Wound Core Power Transformer

Description

Three-dimensional triangular core power transformer Profile
Power transformers, electricitv-based products is extremely wide application. For decades, China and around the world have alongterm extension of lnsert-type power transformers, its performance nas not been fundamentally improved. The Golden Triangle company developed S13-M-RL, S11-M-RL series three-dimensional triangular core power transformer which is the core power transformer revolutionary generation, which is more reasonable, better performance, energy-sawng and a new energy-efficient transformers.
With the second urban and rural power grid construction and Iaunched transformation of the power how to~mprove the tech nological content of power transformer to better imptement the national energy-saving and environmental protection policies and actively promote energy saving, low consumption, environmental protection and application of new products has become an important issue. Three-dimensional core power transformer produced by Golden Triangle is a kind of traditional materials, bul much quieter reducing in the loss and saving materials in full compliance with inemational and domestic low-carbon econo my and enerqy-saving emission reduction policies and guidelines. The product has been incorporated into the national energy efficiency power plant the first batch of selected energy-saving products; national resource conservation and environmental protection of the central budget investment projects; State Ecomomic and Trade Commission, the original Guodian Company has issued a document to promote the energysaving products; Shen power transformer will promote the iron triangle as a plug-piece core transformers, flat roll core power transformer as the replacement products.

Different sort of”core”
Triangular core without cutting, and no punching, eliminating the traditional transformer horizontal, vertical joints, educing
the reluctance; cross section appear a circular core fill factor is the largest, triangle threekimensional structure to make it equal to three-phase magnetic circuit, and the shortest. Realizing the ideal transformer core structure. And the shortest. Realizing the ideal transformer core structure.
Triangular three-dimensional core is the comtinuous steel strip from thenarrow to width, and then from wide to narrow First winding three semicircular cross-section inner core, then three-dimensional inner rcores assembled together, and comstitute
the three a core pillar of the ttriangular cross-section similar to a circular three-dimensional core. Completely symmetrical threephase equivalenmagnetic circuit, shortening the iron yoke, the core columns fill factor high its structure is recognized as the ideal structure of power transformers, which is flat roll core can not match, the tests showed a triangle of three-dimensional volume core power transformer is More than flat items of test data viume core power transformer triangular three-dimensional core structure is a major breakthrough and leap for he power transformer core. Lts birth known as “core power transformers revolution.” Therefore.three-dimensional volume triangular core power transformer is a recognized as energysaving, enviro nmental protection ultra-quiet green power transformer.

S13-M.RL-80~2500/10 new energy-saving three-dimensional triangular wound core transformer


Note: In table, above the “1” is for Dyn11 or Yzn11 connection, the bottom of the “1” is for Yyn0 connection.
