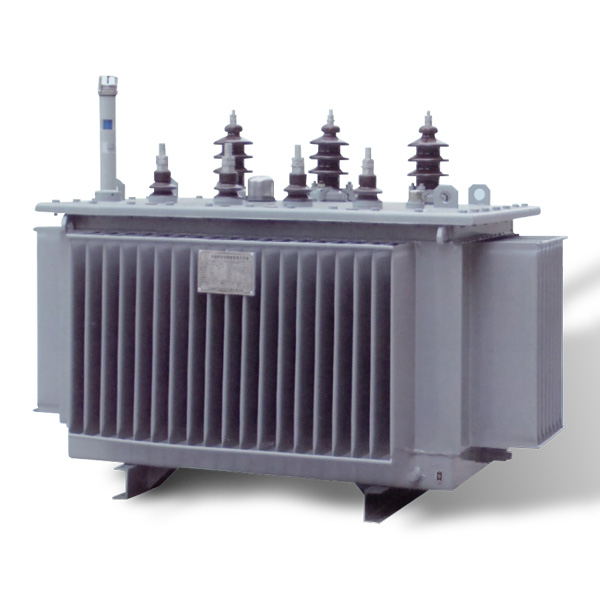

SBH15 Series Amorphous Alloy Transformer
SBH15 series Amorphous alloy Transformer is a low-loss, energy-efficient power transformer. Such Transformers use iron-based amorphous metals as iron cores.
Description
Product introduction
SBH15 series Amorphous alloy Transformer is a low-loss, energy-efficient power transformer. Such Transformers use iron-based amorphous metals as iron cores. Since the material does not have a long-range ordered structure, its magnetization and demagnetization are easier than general magnetic materials. Therefore, the iron loss (i.e., empty load loss) of amorphous alloy Transformers is 70-80 % lower than that of conventional Transformers that generally use Silicon steel as the core.
Standard
GB1094.1-2013; GB1094.2-2013; GB1094.3-2013; GB1094.5-2008; GB/T 6451-2008; GB/T 1094.10-2003; JB/T 10088-2004IEC60076; SANS 780 STANDARDS
Transformer model description
Transformer normal service conditions
1. The height above the sea level is below 1000m;
2. Ambient temperature;
3. Highest air temperature +40℃ ;
4. Highest daily average air temperature+30℃ ;
5. Highest annual average air temperature +20℃ ;
6. Lowest outdoor air temperature -25℃ ;
Three-phase oil immersed amorphous alloy distribution transformer technical data
Note: If the core is 3-phase 3-pole, vector group Yyn0 can be used according to requirements
