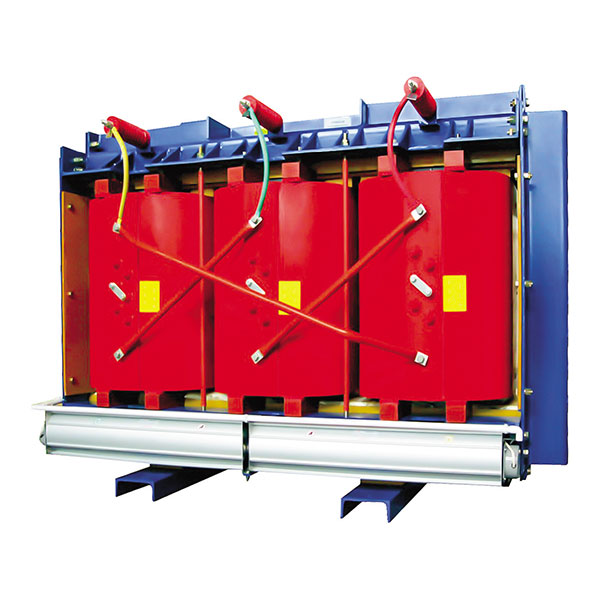

Non Alloy Crystal Dry Type Transformer
the core is wound with amorphous alloy strip, and the structure of three-phase five-column core or three-phase three column coil core is adopted as required. The section of the core is rectangula
Description
Types of meaning
Product features
◆ the core is wound with amorphous alloy strip, and the structure of three-phase five-column core or three-phase three column coil core is adopted as required. The section of the core is rectangula
◆ the high voltage coil adopts segmented cylindrical coil, thin insulation sealed vacuum pouring, large capacity winding with axial air passage, high voltage resistance level of the coil, low local discharge, dust prevention and cooling effect
◆ Low voltage coils using foil coil, layer between the DMD heat curing presoak cloth, effectively solve the low voltage, high current coil using wire-wound ampere-turns imbalance problem, at the same time foil coil axial spiral Angle, there is no short circuit when the transformer under axial force was much less, good manufacturability, additional loss is low, anti short circuit ability
◆ according to the users needs, can be configured with ordinary steel plate, aluminum alloy or stainless steel shell, protection grade IP20IP23, etc
Technical performance parameter
