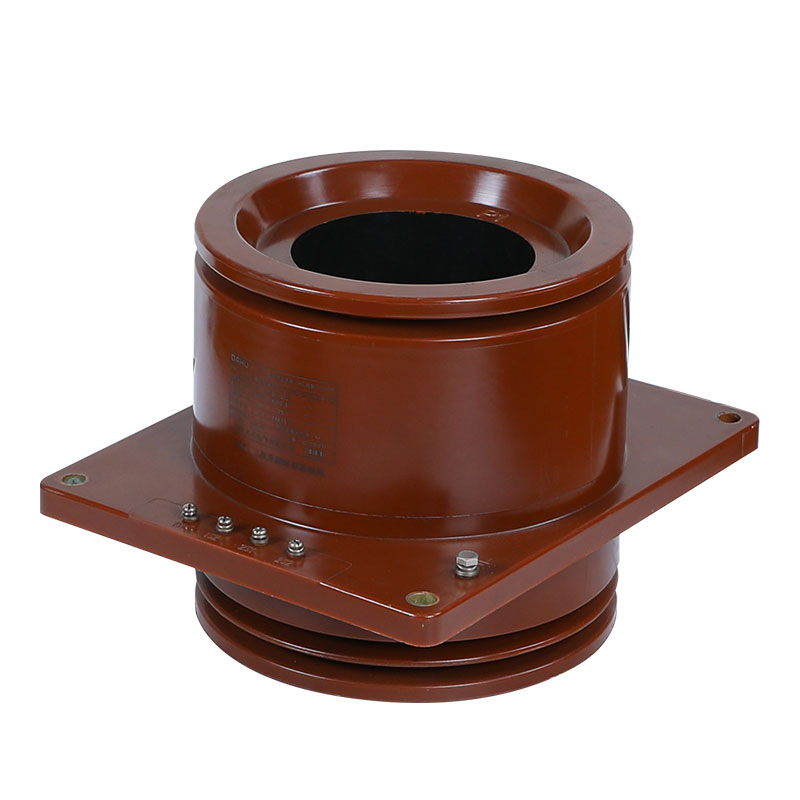

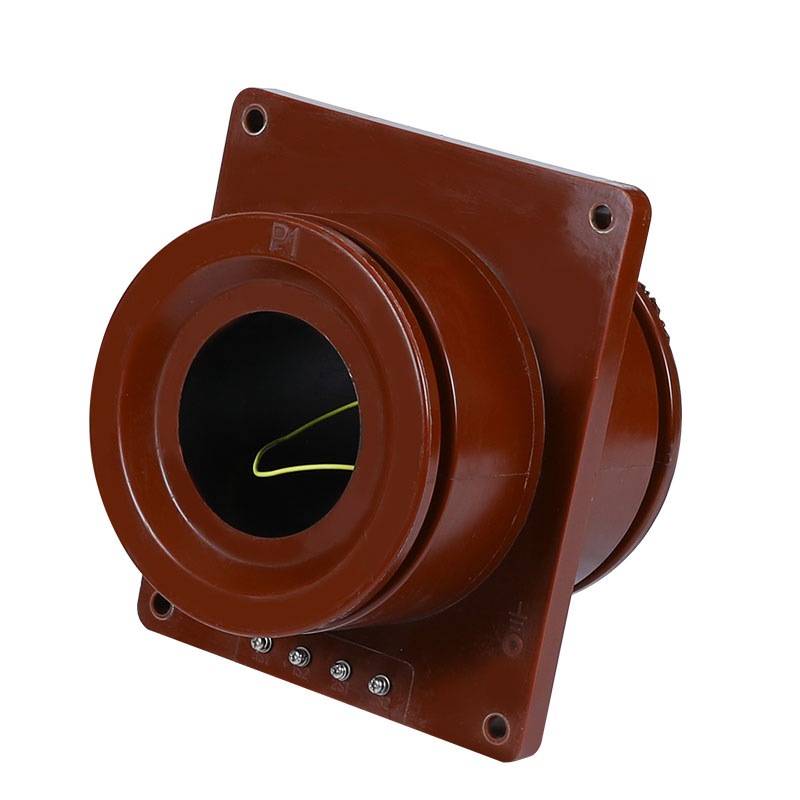

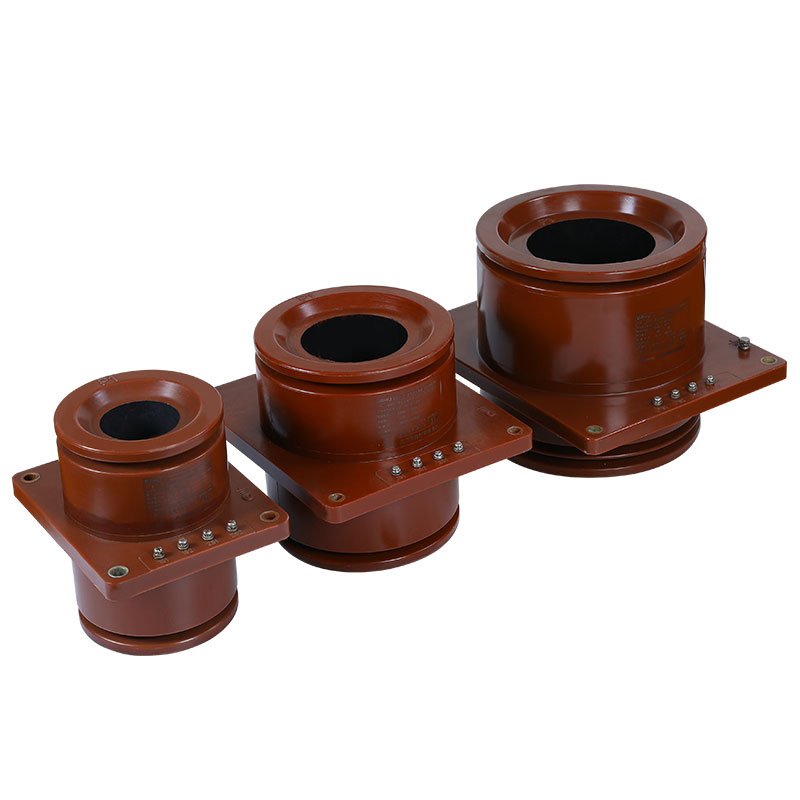

Medium Voltage Indoor Current Transformer

Cold-Rolled Silicon Steel Sheets: Medium voltage indoor current transformer usually uses cold-rolled silicon steel sheets as its core.

Description

Product Description
Cold-Rolled Silicon Steel Sheets: Medium voltage indoor current transformer usually uses cold-rolled silicon steel sheets as its core. These materials are cold-rolled and have excellent magnetic properties, such as high permeability and low core loss, which makes them ideal for current transformers. By using cold rolled silicon steel sheet as the core material, the current transformer can achieve efficient energy transfer, thereby improving the efficiency of the system. Compared to other materials, cold-rolled silicon steel sheets have lower hysteresis loops and magnetization losses, which means less energy waste and lower power consumption.

Epoxy resin: Epoxy resin has excellent dielectric properties and mechanical strength, is the first choice of Medium voltage indoor current transformer insulation material. Epoxy castings provide reliable insulation that protects internal components from electrical breakdown and environmental factors..

Copper : Copper conductors are typically used for windings in Medium voltage indoor current transformer. These materials offer high electrical conductivity and mechanical durability, enabling efficient transmission of current signals while withstanding operational stresses.

Material (Epoxy Resin ): Medium voltage indoor current transformer use enclosures made of epoxy resin, which has excellent insulation properties and can prevent current or voltage crossing for safe circuit operation. It is also resistant to high temperatures and corrosion, and has good sealing performance for waterproof and moisture-proof capabilities. Epoxy transformers are lighter and easier to install and maintain compared to oil-immersed transformers.

Product Details
The Medium voltage indoor current transformer manufactured by CHENGHE ELECTRIC stands out as an indispensable component within indoor switch cabinets, playing a pivotal role in modern electrical systems. Its multifaceted functionalities extend far beyond mere current measurement, encompassing vital tasks such as electrical energy monitoring and the seamless operation of protective relays across both single-phase and three-phase AC systems.

Beyond its functional prowess, the Medium voltage indoor current transformer from CHENGHE ELECTRIC exemplifies a commitment to quality and innovation. Its advanced features, coupled with rigorous testing and compliance with industry standards, instill confidence in its performance and reliability.

Product Superiority
Our product plating of screws and bottom plate reaches 8um/min, which is more moisture-proof and rust-proof. The gloss is better.

1. Application Metering
2 Installation Indoor
3. Construction Dry type Epoxy Resin Cast
4 Insulation Cast Resin
5. Number of Phase Single
6. Rated Frequency 50 Hz
7. System Primary Rated Voltage 11 kV Phase to Phase
8. Maximum System Voltage 12 kV Phase to Phase
9. System Earthing Effectively earthed
10. Basic Insulation Level (1.2/50 μ sec. 75 KV
11. Power Frequency Withstand Voltage (1 min.50
Hz)
28 KV
12.
13.
Ratio:
11kV Feeder
Primary
10-20/5A
Single Winding
14. Secondary Single Winding
15. Accuracy Class 0.2/0.25 for Measurement
16. Burden
a)for Measurement
7.5-10 VA
17. Short Time Current Rating Minimum 10 kA for 1 Sec
18. Extended Curent Rating 120%of Rated Current
19. Over Current Rating <10A
20. Creepage Distance 25 mm/KV(minimum
21. Standard Design,Manufacture,Testing,Installation
and Performance shall be in accordance to
the latest editions of IBC 61869-1 &IEC
61869-2
