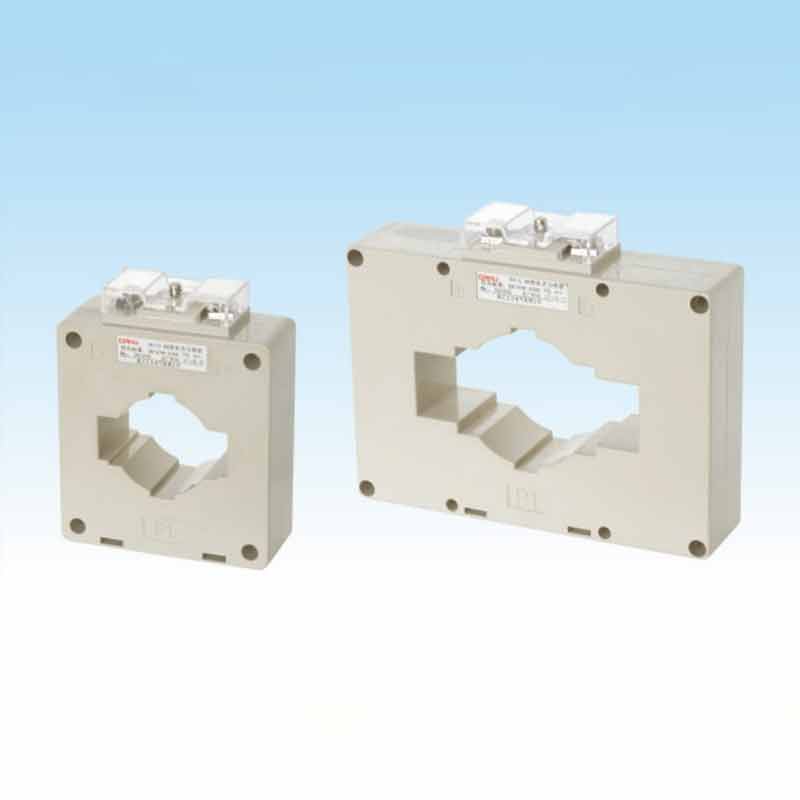

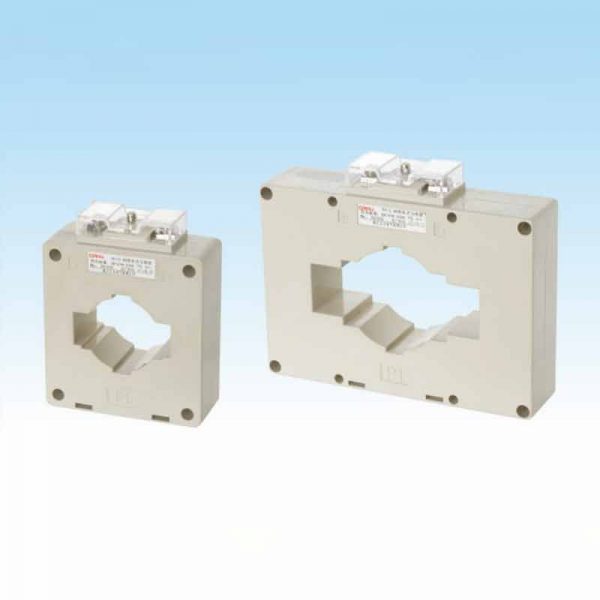

Low Voltage Current Transformer
Find a huge selection of Low Voltage Current Transformer from China at CHENGHE Electric. Provide professional after-sales service and the right price, looking forward to cooperation.
Description
Product Description
Find a huge selection of Low Voltage Current Transformer from China at CHENGHE Electric. Provide professional after-sales service and the right price, looking forward to cooperation.
Type description
Technical data
| Type |
Rated Current ratio (A)
|
Rated secondary output(VA) | Cross-core turn number | |||
| Level 1 | Level 0.5 | 0.5S level | Level 0.2 | |||
| BH-0.66 I
(solid) (Figure 1) |
5/5 | 5 | 2.5 | / | ||
| 10/5 | 5 | 2.5 | ||||
| 15/5 | 5 | 2.5 | 1 | / | ||
| 20/5 | 5 | 2.5 | / | / | ||
| 25/5 | 5 | 2.5 | / | / | ||
| 30/5 | 5 | 2.5 | ||||
| 40/5 | 5 | 2.5 | 1 | |||
| 50/5 | 5 | 2.5 | 1 | / | / | |
| 75/5 | 5 | 2.5 | 1 | / | / | |
| BH-0.6630 I
(Figure 2) |
30/5 | 5 | 2.5 | 1 | 5 | |
| 50/5 | 5 | 2.5 | / | 3 | ||
| 75/5 | 5 | 2.5 | 2 | |||
| 75/5 | 2.5 | / | / | 1 | ||
| 100/5 | 2.5 | 2.5 | / | 1 | ||
| 100/5 | 5 | 5 | / | 2 | ||
| 150/5 | 5 | 2.5 | ||||
| 200/5 | 5 | 5 | 1 | / | 1 | |
| 250/5 | 5 | 5 | / | 1 | ||
| 300/5 | 5 | 5 | / | 1 | ||
| 400/5 | 5 | |||||
| BH-0.6630IB
(Figure 3) |
30/5 | / | 2.5 | 2.5 | 5 | |
| 50/5 | / | 2.5 | 2.5 | 3 | ||
| 75/5 | / | / | 2.5 | 2.5 | 2 | |
| 75/5 | 5 | 2.5 | 1 | / | 1 | |
| 10015 | 5 | 2.5 | ||||
| 100/5 | / | 5 | 5 | 2 | ||
| Type |
Rated Current ratio (A)
|
Rated secondary output(VA) | Cross-coreturn number | |||
| Level 1 | Level 0.5 | 0.5S level | Level 0.2 | |||
| BH-0.6630IB
(Figure 3 ) |
150/5 | / | / | 2.5 | 2.5 | |
| 200/5 | / | 1 | 5 | 5 | 1 | |
| 250/5 | / | 1 | 5 | 5 | 1 | |
| 300/5 | / | 5 | 5 | 1 | ||
| BH-0.6640 I
(Figure4 ) |
30/5 | 5 | 2.5 | / | / | 5 |
| 50/5 | 5 | 2.5 | / | / | 3 | |
| 75/5 | 5 | 2.5 | / | / | 2 | |
| 75/5 | 2.5 | / | / | / | 1 | |
| 100/5 | 2.5 | / | 1 | 1 | 1 | |
| 100/5 | 5 | 5 | / | / | 2 | |
| 150/5 | 5 | 2.5 | / | / | ||
| 200/5 | 5 | 5 | / | / | ||
| 250/5 | 5 | 5 | 1 | 1 | 1 | |
| 300/5 | 5 | 5 | / | / | 1 | |
| 400/5 | 5 | 5 | 1 | 1 | 1 | |
| 500/5 | 10 | 10 | 5 | 5 | 1 | |
| 600/5 | 10 | 10 | 5 | 5 | 1 | |
| BH-0.6650 I
(Figure5 ) |
150/5 | 2.5 | / | / | / | |
| 200/5 | 5 | 2.5 | 1 | 1 | 1 | |
| 250/5 | 5 | 5 | / | / | 1 | |
| 300/5 | 5 | 5 | / | / | 1 | |
| 400/5 | 5 | 5 | / | / | ||
| 500/5 | 10 | 10 | 5 | 5 | 1 | |
| 600/5 | 10 | 10 | 5 | 5 | ||
| 750/5 | 10 | 10 | 10 | 10 | 1 | |
| 800/5 | 10 | 10 | 10 | 10 | ||
| 1000/5 | 10 | 10 | 10 | 10 | 1 | |
| 1200/5 | 20 | 20 | 20 | 20 | ||
| BH-0.6660 I
(Figure 6 ) |
200/5 | 5 | / | / | / | 1 |
| 250/5 | 5 | 5 | / | / | 1 | |
| 300/5 | 5 | 5 | 1 | 1 | 1 | |
| 400/5 | 5 | 5 | / | / | 1 | |
| 500/5 | 10 | 10 | 5 | 5 | 1 | |
| 600/5 | 10 | 10 | 5 | 5 | ||
| 750/5 | 10 | 10 | 10 | 10 | 1 | |
| 800/5 | 10 | 10 | 10 | 10 | 1 | |
| 1000/5 | 10 | 10 | 10 | 10 | 1 | |
| 1200/5 | 20 | 20 | 20 | 20 | ||
| 1500/5 | 20 | 20 | 20 | 20 | ||
|
Type
|
Rated Current ratio (A)
|
Rated secondary output(VA) |
Cross-core turn number
|
|||
| Level 1 | Level 0.5 | 0.5S level | Level 0.2 | |||
| BH-0.6680 I
(Figure7 ) |
300/5 | 5 | 5 | / | / | |
| 400/5 | 5 | 5 | / | / | ||
| 500/5 | 10 | 10 | / | / | ||
| 600/5 | 10 | 10 | / | / | ||
| 750/5 | 10 | 10 | 10 | 10 | 1 | |
| 800/5 | 10 | 10 | 10 | 10 | ||
| 1000/5 | 10 | 10 | 10 | 10 | ||
| 1200/5 | 20 | 20 | 20 | 20 | ||
| 1500/5 | 20 | 20 | 20 | 20 | ||
| 2000/5 | 20 | 20 | 20 | 20 | ||
| BH-0.66100 I
(Figure8 ) |
600/5 | 10 | 10 | / | / | |
| 750/5 | 10 | 10 | 10 | 10 | ||
| 800/5 | 10 | 10 | 10 | 10 | ||
| 1000/5 | 10 | 10 | 10 | 10 | ||
| 1200/5 | 20 | 20 | 20 | 20 | ||
| 1500/5 | 20 | 20 | 20 | 20 | ||
| 2000/5 | 20 | 20 | 20 | 20 | ||
| 2500/5 | 40 | 40 | 40 | 40 | ||
| BH-0.66120 I
(Figure 9 ) |
1000/5 | 10 | 10 | 10 | 10 | |
| 1200/5 | 20 | 20 | 20 | 20 | ||
| 1500/5 | 20 | 20 | 20 | 20 | 1 | |
| 2000/5 | 20 | 20 | 20 | 20 | ||
| 2500/5 | 40 | 40 | 40 | 40 | ||
| 3000/5 | 40 | 40 | 40 | 40 | ||
| 4000/5 | 40 | 40 | 40 | 40 | 1 | |
Please provide the following information when placing an order
1 Product model and window width;
2 Rated current ratio;
3 Rated output and corresponding accuracy class;e.g.:when ordering the transformer BH-0.66 I type.Window width is 30mm,rated current ratio is 200/5A,rated output is 5VA, accuracy class is 0.5.Ordering code is:BH-0.66301200/5A 1 turn 5VA class 0.5.
4 Please negotiate with the manufacturer if there is any special requirement.
Overall dimension drawing
