GW4 Series Outdoor High Voltage Disconnectors

GW4 series Outdoor High Voltage disconnectors are 3 phase AC 50Hz high voltage switchgears.

Description

Description
GW4 series Outdoor High Voltage disconnectors are 3 phase AC 50Hz high voltage switchgears. They are used in no-load condition to switch off the electric circuit and isolate electrical equipment, such as high voltage bus, circuit breaker etc, and high voltage line up to 252kV power system. The disconnecting switch can be divided into: No grounding, Single grounding and Double Grounding, and mechanical interlock is set between the main blade and earthing switch.

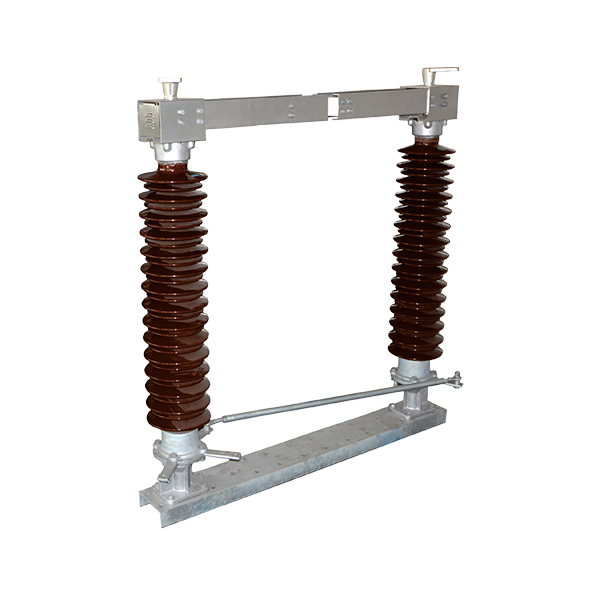

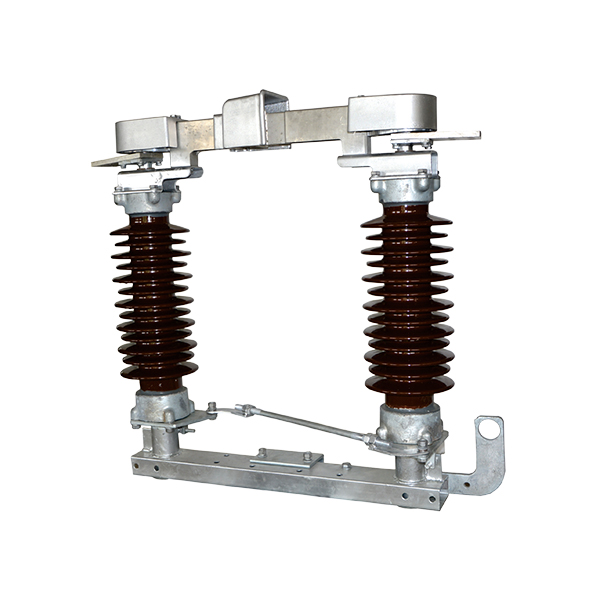

This product is double pole structure, mainly consisting of frame, porcelains and conductive parts. Two porcelain poles of each phase are mounted respectively on bearing holders of both ends of the frame, and connected by cross links for horizontal rotation. Each of the conductive blade is divided into two parts fixed on the two supporting porcelains, and the contact part is right in the middle. It has pollution- proof type and plateau type.

Environment condition
– Ambient temperature: max +40°C min -35°C
– Altitude: ≤3000m
– Wind pressure: ≤700Pa (equals to wind speed 34m/s)
– Air contamination degree: IV degree
– Earthquake intensity: ≤8 degree
– No corrosive or flammable gas

Technical Data

1 Rated Voltage (kV) 40.5 126 252
2 1min power frequency withstand voltage
(Effective value) kV
To Ground 95 230 460
Between Fracture 115 245 460+145
3 Lightning Impulse withstand voltage
(Peak value) kV
To Ground 185 550 1050
Between Fracture 215 630 1050+200
4 Mechanical life (Times) 2000
5 Rated Current (A) 400 630 1000 1250 1600 2000 3150 4000
6 Rated short time withstand Current (kA) 20 20 31.5 31.5 40 40 50 50
7 Rated withstand current (Peak value) kA 40 50 80 80 100 100 125 125
8 Rated connect machine load (N) Horizontal vertical 750 1000 1000
Horizontal transverse 500 750 750
Vertical force 750 1000 1000
9 Creepage distance (mm) 1013-2256 1813-2250 3150-3906
10 Manual operating mechanism No grounding CS11(F)
Single grounding CS8-6D(F)
Double grounding Main knife CS14G(F); Earth knife CS11(F)
Control loop voltage (V) AC220, DC110, DC220
11 Motor operating mechanism Model CJ6
Motor voltage (V) AC220, DC380, DC220
Control loop voltage (V) AC220, DC380, DC220
Switching time (s) 6±1

Outline & Mounting Dimensions

1.Base 2. post insulator 3. Terminal

4. Static conducting tube 5. Waterproof cover 6. Dynamic conducting tube
