GW1-12G(D) Series Outdoor High-voltage Isolating Switch

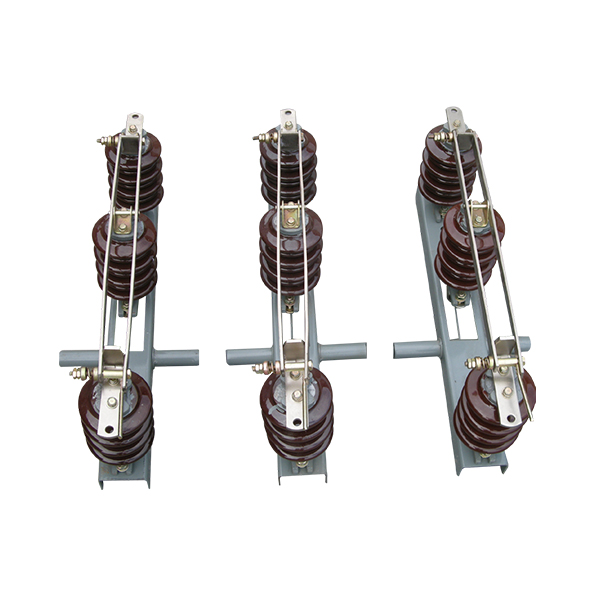

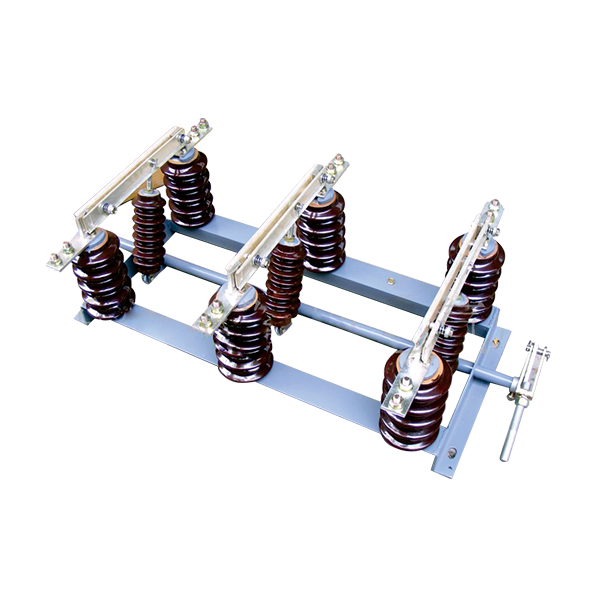

GW1-12G(D) series outdoor high-voltage isolating switch, which is a high-voltage switchgear with single-pole structure.

Description

Description
GW1-12G(D) series outdoor high-voltage isolating switch, which is a high-voltage switchgear with single-pole structure. It can be used for circuit and circuit in the outdoor 12KV line network with voltage and no load.
Switch with grounding knife, with CS port type manual mechanism, can prevent the grounding wire and the grounding wire from being “closed” Waiting for the wrong operation, the operator does not have to hang the ground wire.
The anti-fouling outdoor high-voltage isolating switch can meet the requirements of users in severely polluted areas, and can effectively solve the problem of pollution flashing that occurs in the operation of the isolating switch.

Environment condition
– Ambient temperature: max +40°C min -30°C
– Altitude: ≤1000m
– Air contamination degree: IV degree
– Earthquake intensity: ≤8 degree
– No corrosive or flammable gas

Technical Data

1 Rated voltage kV 10/15
2 Maximum work voltage kV 12/20
3 Rated frequency HZ 50
5 Rated current A 200/400/630/1250
6 4s short time withstand current kA 6.3/12.5/20/31.5
7 Rated peak withstand current kA 16/31.5/50/80
8 accessories frame CS8-1,CS8-D,CS8-5 manual actuator form, CJ61 motor actuator form
4 mechanical endurance Times 10000

Outline & Mounting Dimensions
