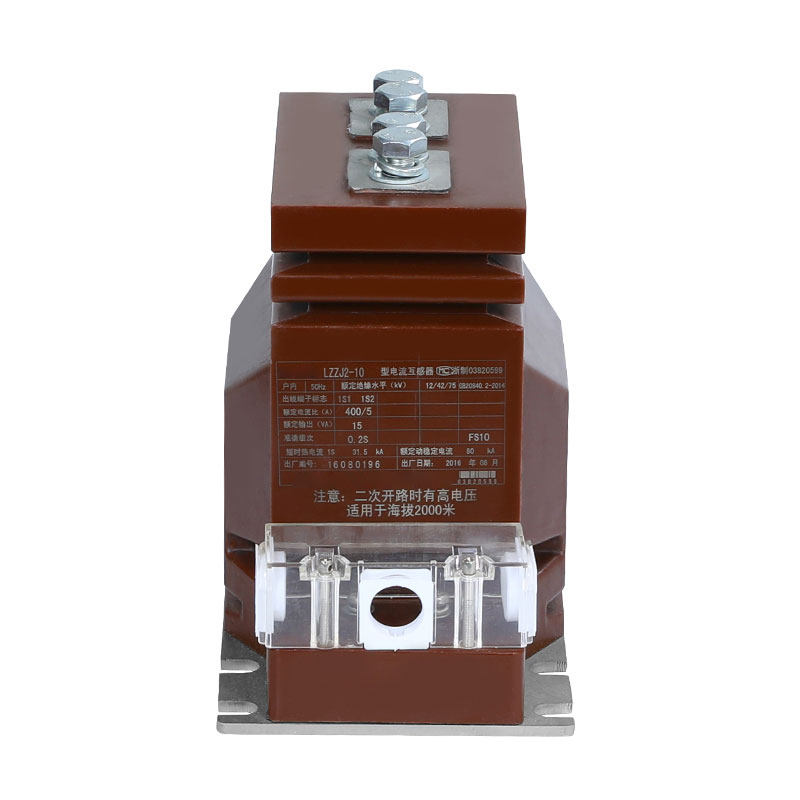

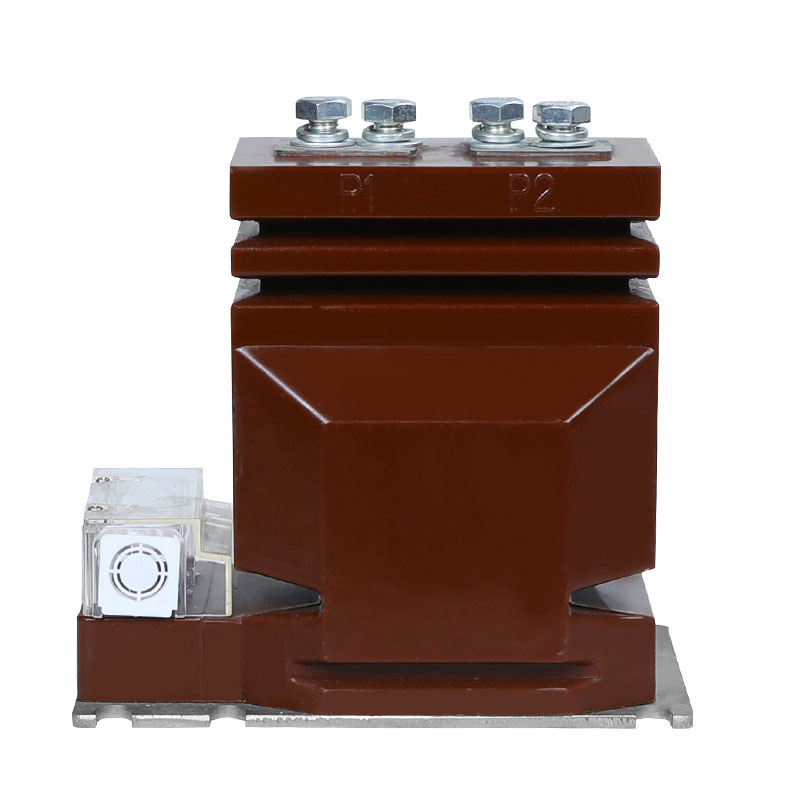

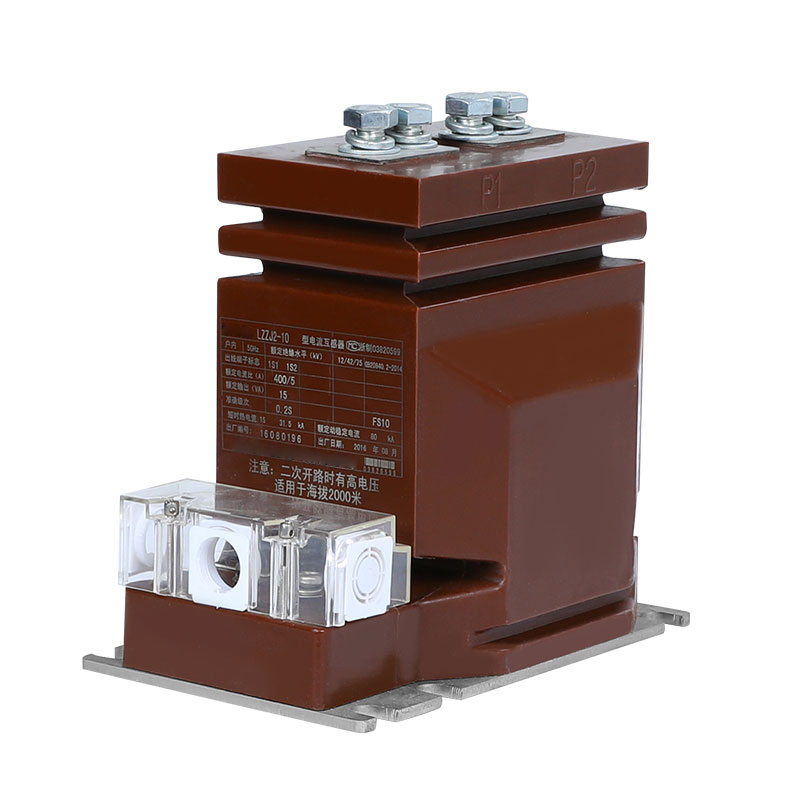

Electric 11kV Current Transformer
Cold-Rolled Silicon Steel Sheets: Dahu Electric 11kv Current Transformer commonly utilize cold-rolled silicon steel sheets for their core.
Description
Product Description
Cold-Rolled Silicon Steel Sheets: Dahu Electric 11kv Current Transformer commonly utilize cold-rolled silicon steel sheets for their core. These materials are cold-rolled and have excellent magnetic properties, such as high permeability and low core loss, which makes them ideal for current transformers. By using a cold-rolled silicon steel sheet as the core material, the current transformer can achieve efficient energy transfer, thereby improving the efficiency of the system. Compared to other materials, cold-rolled silicon steel sheets have lower hysteresis loops and magnetization losses, which means less energy waste and less power consumption. Therefore, the current transformer using this material can reduce the operating cost of the system and extend the service life of the equipment. In general, cold-rolled silicon steel sheets play an important role in power systems, providing reliable support for energy transmission and power measurement..
Epoxy resin: Epoxy resin has excellent dielectric properties and mechanical strength, is the first choice of 11kV current transformer insulation material. Epoxy castings provide reliable insulation that protects internal components from electrical breakdown and environmental factors..
Copper : Copper conductors are typically used for windings in 11kV current transformers. These materials offer high electrical conductivity and mechanical durability, enabling efficient transmission of current signals while withstanding operational stresses.
Material (Epoxy Resin ): 11kV current transformers are housed in enclosures made of epoxy resin. Epoxy resin has excellent insulation properties, can effectively prevent current or voltage crossing, to ensure the safe operation of the circuit.
It has high temperature resistance and can adapt to the working requirements in high temperature environment.It has good corrosion resistance, can resist the erosion of some chemical substances, and extend the service life of the transformer.
It has good sealing performance, so the epoxy transformer usually has good waterproof and moisture-proof performance and is suitable for use in humid environments.Compared to traditional oil-immersed transformers, epoxy transformers generally have a lighter weight and are easy to install and maintain.
11kv Current Transformer Parameter
| 1. | Application | Metering |
| 2 | Installation | Indoor |
| 3. | Construction | Dry type Epoxy Resin Cast |
| 4 | Insulation | Cast Resin |
| 5. | Number of Phase | Single |
| 6. | Rated Frequency | 50 Hz |
| 7. | System Primary Rated Voltage | 11 kV Phase to Phase |
| 8. | Maximum System Voltage | 12 kV Phase to Phase |
| 9. | System Earthing | Effectively earthed |
| 10. | Basic Insulation Level (1.2/50 μ sec. | 75 KV |
| 11. | Power Frequency Withstand Voltage (1 min.50 Hz) |
28 KV |
| 12. 13. |
Ratio: 11kV Feeder Primary |
10-20/5A Single Winding |
| 14. | Secondary | Single Winding |
| 15. | Accuracy Class | 0.2/0.25 for Measurement |
| 16. | Burden a)for Measurement |
7.5-10 VA |
| 17. | Short Time Current Rating | Minimum 10 kA for 1 Sec |
| 18. | Extended Curent Rating | 120%of Rated Current |
| 19. | Over Current Rating | <10A |
| 20. | Creepage Distance | 25 mm/KV(minimum |
| 21. | Standard | Design,Manufacture,Testing,Installation and Performance shall be in accordance to the latest editions of IBC 61869-1 &IEC 61869-2 |
