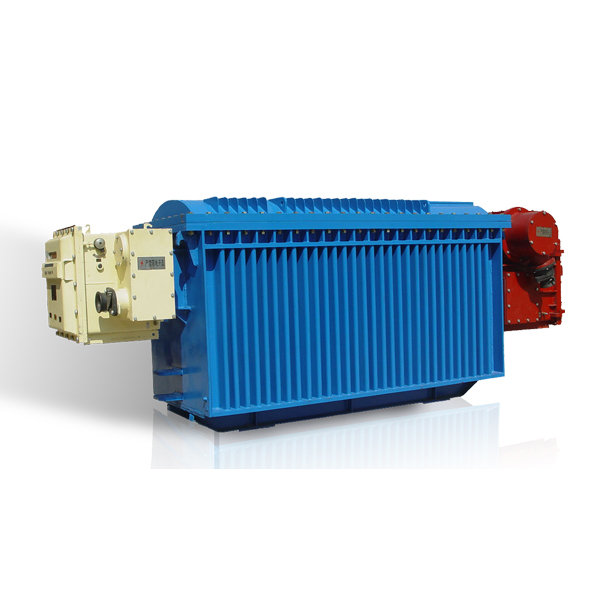

Dry Type Mining Explosion Isolation Movable Transformer Substation

Description

Features of Products
The mineral product separates the explode migration transformer substation separates the explode migration transformer substation by the mineral product with the do-like transformer. the high-pressured load switch either the high pressure and the low pressure switch or the low pressure guarantees is composed. Has the leakage. the leakage, the overload, short-circuits, the performance.
KBSGZY series dry type mining explosion isolation movable transformer substation iS a kind of movable whole set distribution and transformation device. It is suitable for not only mines filled with firedamp mixed gas, grime and explosive gas, but also the gas and steam environment that can not erode metal and insulation.

Standard
JB3955-1993; GB1094.1~2-1996; GB12173-2008; GB1094.3-2003; GB10 94.5-2008

Transformer Type Meaning

Using environment and working condition
1. The elevation is less than 1000m, the special environment gives the explanation in addition
2. Ambient temperature:
Highest temperature +40℃ ;
Lowest temperature -5℃ ;
Maximum daily average temperature +30℃ ;
Maximum annual average temperature +20℃ ;
Lowest outdoor air temperature-5℃ ;
3. The relative humidity is less than 95% (When the air temperature is 25℃ );
4. In has the methane and the coal dust, also has the explosion hazard in the mine pit;
5. Does not have, the vibration as well as with the gradient does not surpass in 15° environment;
6. Does not have sufficiently the dipping and the insulation gas and the steam;
7. No-water drop place;
8. Power supply voltage profile is approximate to the sine wave;
9. The three-phase supply voltage approximate is symmetrical;(When extracts this condition stipulation, separate consultation)

KBSGZY series 6kV mining explosion isolation dry type movable transformer substation technical data

KBSGZY series 11kV mining explosion isolation dry type movable transformer substation technical data
