CHF-5
Drop Out Fuse Cutout is a kind of outdoor high voltage protection device.
Description
General

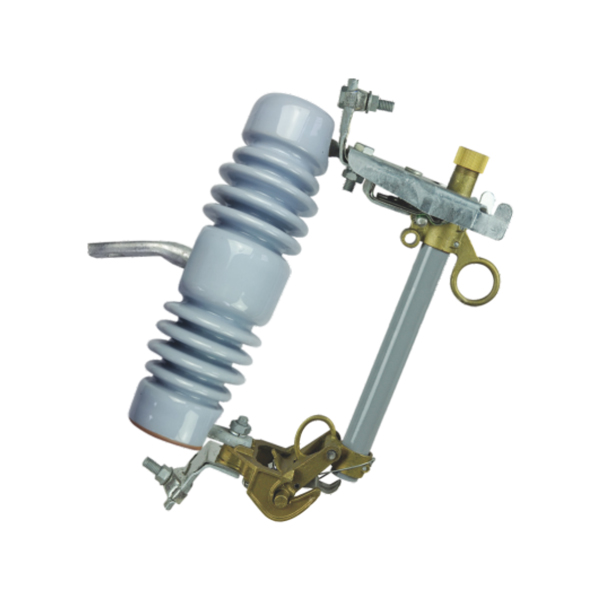

Drop Out Fuse Cutout is a kind of outdoor high voltage protection device. It is connected with the incoming feeder of the distribution transformer or distribution lines and primarily used to protect transformers or lines against the impact raised by short circuit, overload and switching current. The drop-out fuse cutout is composed of insulator support and a fuse carrier, static contacts that are fixed on two sides of insulator support and moving contact installed on two ends of fuse carrier. The interior of the fuse carrier is the extinguishing tube while the exterior is made of phenolic compound paper tube or epoxy glass.
During normal operation, the fuse link is tightened to form the closing position. In fault current situation, the fuse link melts and an electrical arc is formed. The arc-extinguishing tube is heated and explosion of gas occurs which causes high pressure inside the fuse carrier tube and makes the tube to separate from the contacts. The contact is relaxed once the fuse element melts.
The fuse cutout is now in the open position, the operator needs to switch the current off. The moving contact can be pulled off by an insulated hot sticker. The main contact and auxiliary contact are connected.
Conditions of Application
Ambient environment:
a) Temperature:-40℃≤T≤40℃
b) Altitude above sea level:≤1000m
c) Max. wind speed:≤35m/s
d) Earthquake intensity:≤8degree
Standard
CHF type design and test meet the following standard requirements:
NEMASG-2-1986
ANSIC37.41.1994
ANSIC37-42-1989 GB
GB 15166.3-1994
DL/T 640-1997
