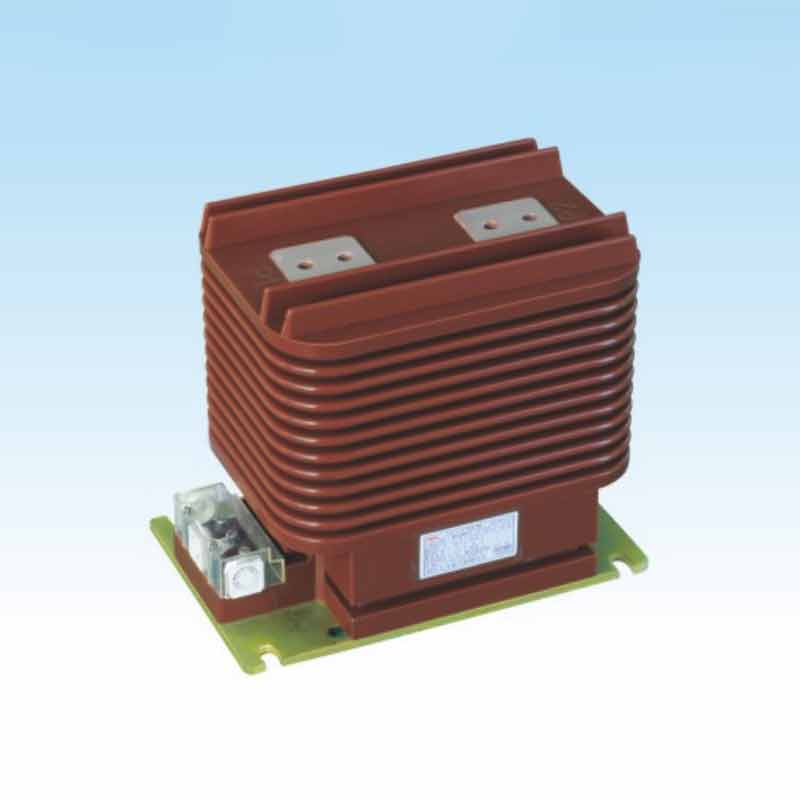

24kV Current Transformer
CHENGHE Electric is a proficient manufacturer and supplier of 24 Kv Current Transformer in China. If you’re searching for the 24 Kv Current Transformer at an affordable price, get in touch with us right away!
Category: Combined Instrument Transformer
Description
Product Description
CHENGHE Electric is a proficient manufacturer and supplier of 24 Kv Current Transformer in China. If you’re searching for the 24 Kv Current Transformer at an affordable price, get in touch with us right away!
Type description
Technical data
Rated primary
current(A) |
Accuracy classes
combination |
Rated secondary output(VA) | 1s thermal current (kA) | Rated dynamic
current (kA) |
|||
0.2(S) | 0.5(S) | 10P10 | 10P15 | ||||
20-150 | 0.2(S/0.2
0.2(S)/0.5 0.2(S)/10P10 0.5(S)/10P10 0.2(S)Y10P15 0.5(S)/10P15 |
10
|
10
|
20
|
15
|
150l1n | 375l1n |
200 | 31.5 | 80 | |||||
300-500 | 45 | 112.5 | |||||
600、800 |
10
|
15
|
30
|
20
|
63 | 130 | |
1000、1200 | 80 | 160 | |||||
1500-2500 | 20 | 30 | 30 | 20 | 100 | 160 |
Overall dimension drawing
