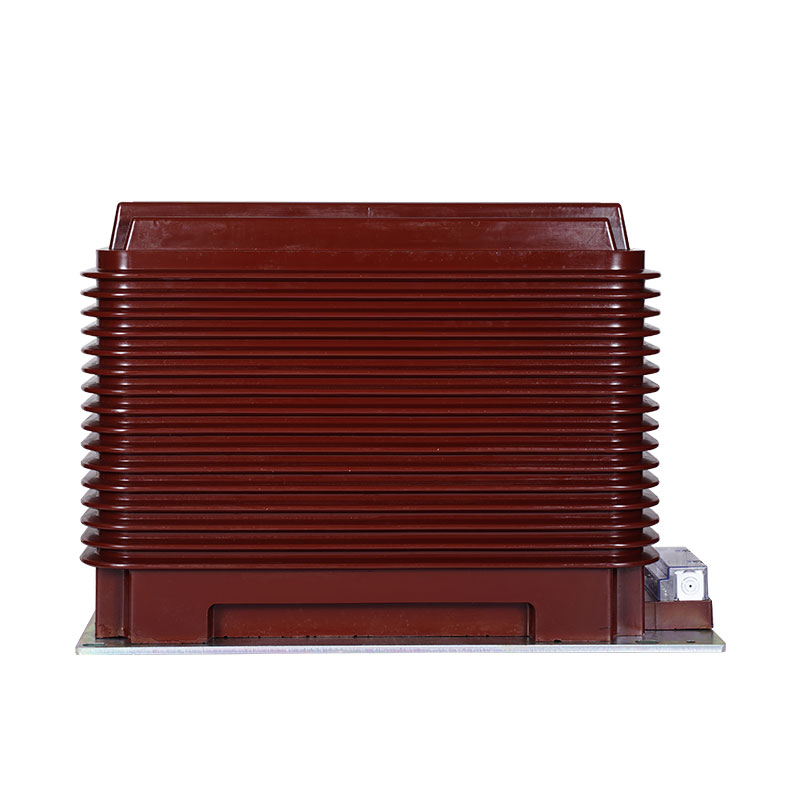

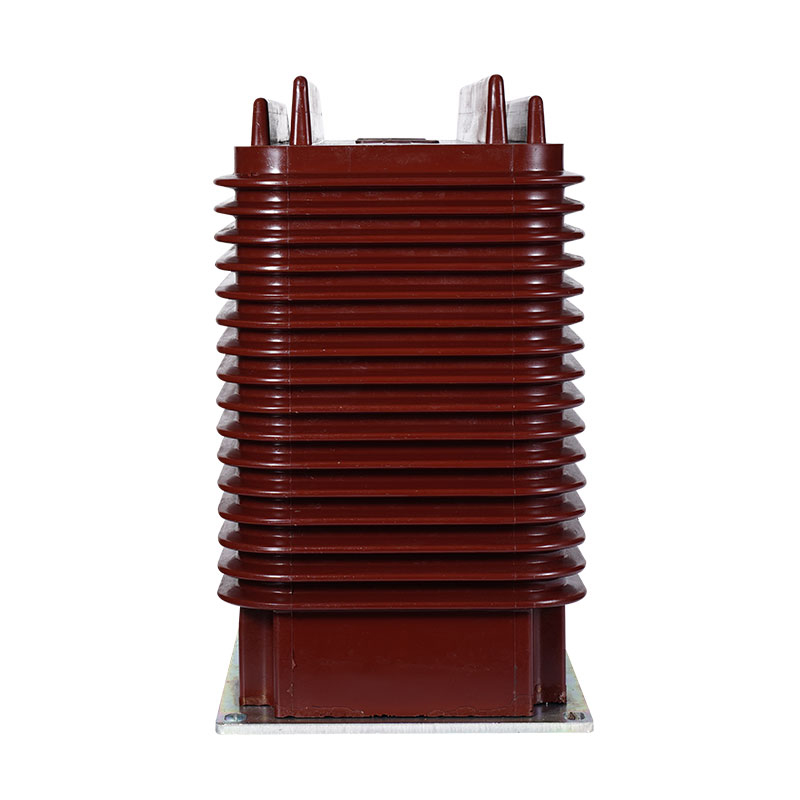

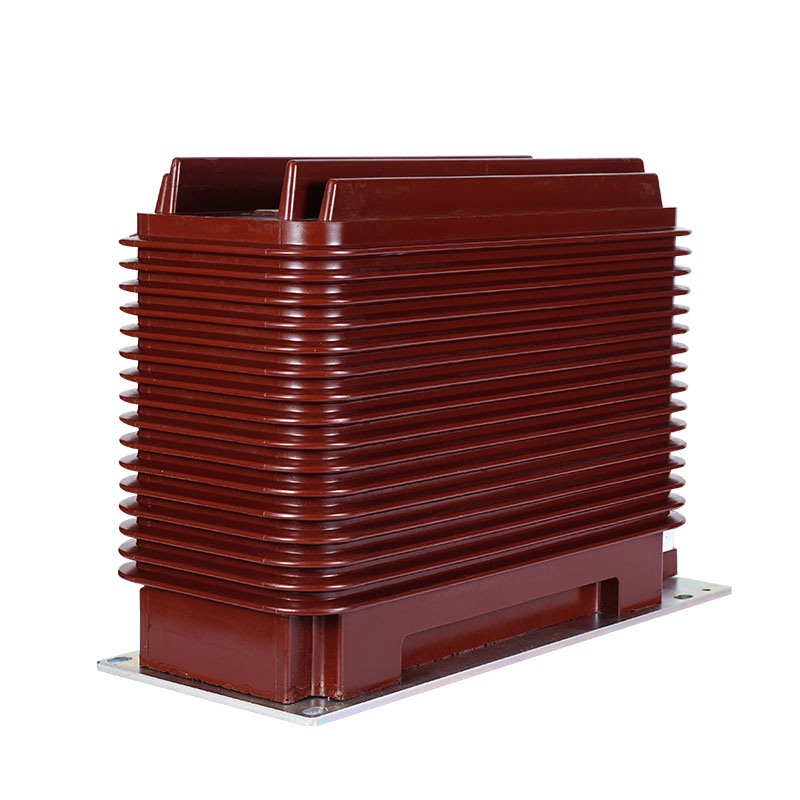

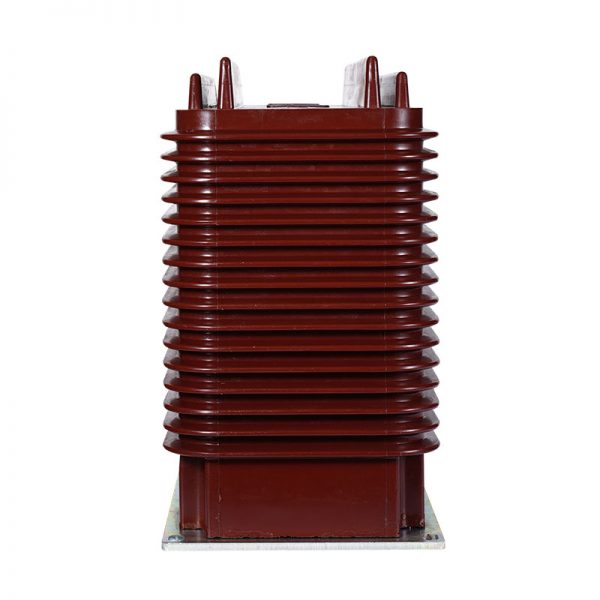

24kv Current Transformer
Cold-rolled silicon steel sheet :Because of its excellent magnetic properties, cold-rolled silicon steel sheet is often used as the core material of 24kV current transformer.
Description
Product Description
Cold-rolled silicon steel sheet :Because of its excellent magnetic properties, cold-rolled silicon steel sheet is often used as the core material of 24kV current transformer. These materials have high permeability and low core loss, making them efficient for energy transfer. They have lower hysteresis loops and magnetization losses compared to alternatives, resulting in less energy waste and lower power consumption.
Epoxy resin: Epoxy resin is a highly versatile and widely utilized material in various industries, owing to its exceptional dielectric properties and mechanical strength. It is particularly favored as the primary insulation material for 24kV current transformers. The dielectric properties of epoxy resin refer to its ability to resist the flow of electric current, which is crucial in ensuring the safe and efficient operation of electrical equipment. Thanks to its high dielectric strength, epoxy resin can withstand high voltage levels without breaking down, making it an ideal choice for insulation in current transformers.
In addition to its dielectric properties, epoxy resin also offers exceptional mechanical strength. It has a high tensile strength, which means it can withstand significant mechanical stress without deforming or breaking. This makes it highly reliable in protecting internal components of current transformers from external forces and vibrations.
Epoxy castings are made by pouring epoxy resin into a mold to provide reliable insulation for current transformers. The casting process ensures a uniform and seamless insulation layer that effectively prevents electrical breakdown and leakage. The insulation layer can also block moisture, dust, chemicals and other environmental factors to further enhance the protection of internal components.
Copper : Copper conductors are typically used for windings in 24kV current transformers. These materials offer high electrical conductivity and mechanical durability, enabling efficient transmission of current signals while withstanding operational stresses.
Product Details
The 24kV current transformer manufactured by CHENGHE ELECTRIC is an essential component in indoor switch cabinets, playing a crucial role in modern electrical systems. It not only measures current but also performs important tasks such as electrical energy monitoring and ensuring the smooth operation of protective relays in both single-phase and three-phase AC systems.
In addition to its functional capabilities, the 24kV current transformer from CHENGHE ELECTRIC is known for its commitment to quality and innovation. It incorporates advanced features, undergoes rigorous testing, and complies with industry standards, ensuring reliable performance.
Product Superiority
Our product plating of screws and bottom plate reaches 8um/min, which is more moisture-proof and rust-proof. The gloss is better.
1. | Application | Metering |
2. | Installation | Indoor |
3. | Construction | Dry type Epoxy Resin Cast |
4. | Insulation | Cast Resin |
5. | Number of Phase | Single |
6. | Rated Frequency | 50 Hz |
7. | Systen Primary Rated Voltage | 22 kV Phase to Phase |
8. | Maximum Systen Voltage | 24 kV Phase to Phase |
9. | System Earthing | Effectively earthed |
10. | Basic Insulation Level (1.2/50 u sec. | 125 KV |
11. | Power Frequency Withstand Voltage (1 min.50 Hz) |
50 KV |
12. 13. |
Rat io: 11kV Feeder Primary |
200/5A Single Winding |
14. | Secondary | Single Winding |
15. | Accuracy Class | 0.2/0.25 for Measurement |
16. | Burden a)for Measurement |
10-15 VA |
17. | Short Time Current Rating | Minimum 80 kA for 1 Sec |
18. | Extended Curent Rating | 120%of Rated Current |
19. | Creepage Distance | 28 mm/KV(minimum) |
20. | Standard | Design,Manufacture,Testing,Installation and Performance shall be in accordance to the latest editions of IEC 61869-1 &IEC 61869-2 |
