24kV CT
Cold-rolled silicon steel sheet :24kV CT often uses cold-rolled silicon steel sheet as its core due to its excellent magnetic properties.
Description
Product Description
Cold-rolled silicon steel sheet :24kV CT often uses cold-rolled silicon steel sheet as its core due to its excellent magnetic properties. These materials exhibit high permeability and low core loss, making them ideal for efficient energy transfer. They have lower hysteresis loops and magnetization losses compared to other options, resulting in less energy waste and lower power consumption.
Epoxy resin: Epoxy resin has excellent dielectric properties and mechanical strength, is the first choice of 24kV CT insulation material. Epoxy castings provide reliable insulation that protects internal components from electrical breakdown and environmental factors.
The dielectric properties of epoxy resin refer to its ability to resist the flow of electric current. This property is crucial in ensuring the safe and efficient operation of electrical equipment. Epoxy resin’s high dielectric strength allows it to withstand high voltage levels without breaking down, making it an ideal choice for insulation in current transformers.
In addition to its dielectric properties, epoxy resin also offers exceptional mechanical strength. It has a high tensile strength, which means it can withstand significant mechanical stress without deforming or breaking. This makes it highly reliable in protecting internal components of current transformers from external forces and vibrations.
Copper : Copper conductors are typically used for windings in 24kV CT. These materials offer high electrical conductivity and mechanical durability, enabling efficient transmission of current signals while withstanding operational stresses.
Material (Epoxy Resin ): 24kV CT use enclosures made of epoxy resin, which has excellent insulation properties and can prevent current or voltage crossing for safe circuit operation. It is also resistant to high temperatures and corrosion, and has good sealing performance for waterproof and moisture-proof capabilities. Epoxy transformers are lighter and easier to install and maintain compared to oil-immersed transformers.
Product Details

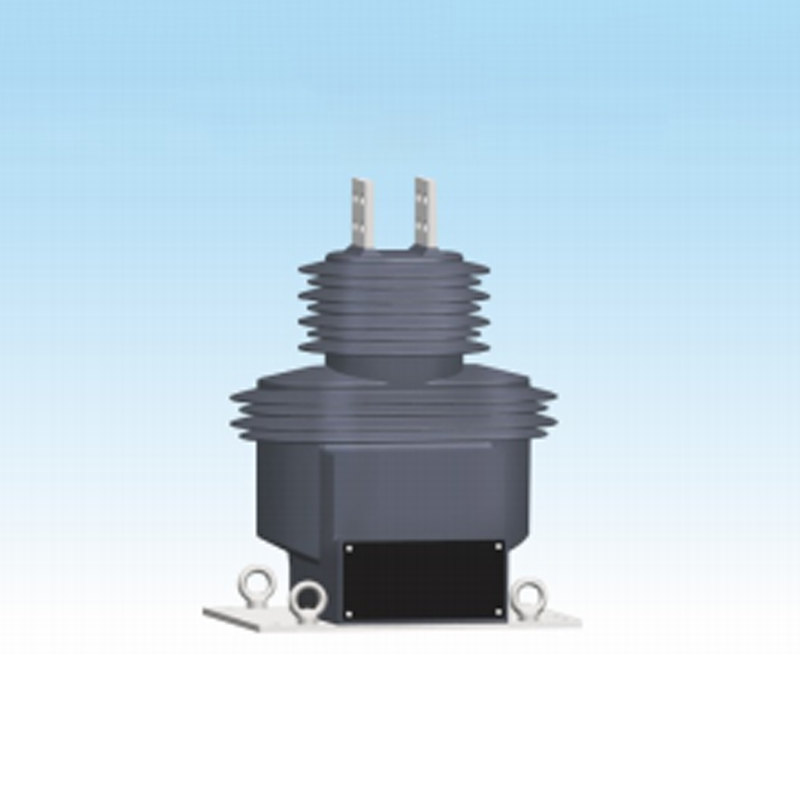

The 24kV CT manufactured by CHENGHE ELECTRIC is an essential component in indoor switch cabinets, playing a crucial role in modern electrical systems. It not only measures current but also performs important tasks such as electrical energy monitoring and ensuring the smooth operation of protective relays in both single-phase and three-phase AC systems.
In addition to its functional capabilities, the 24kV CT from CHENGHE ELECTRIC is known for its commitment to quality and innovation. It incorporates advanced features, undergoes rigorous testing, and complies with industry standards, ensuring reliable performance.
Product Superiority
Our product plating of screws and bottom plate reaches 8um/min, which is more moisture-proof and rust-proof. The gloss is better.
1. | Applscat son | Metering |
2 | Installation | outdoor |
3. | Construction | Dry type Epoxy Resin Cast |
4. | Insulation | Cast Resin |
5. | Number of Fhase | Single |
6. | Rated Frequency | 50 Hz |
7. | Sraten Primary Rated Voltage | 22 kV Phase to Phase |
8. | Maximun Systen Voltage | 24 kV Phase to Phase |
9. | Syaten Earthing | Effectively earthed |
10. | Basic Inrulation Level (1.2/50 # sac. | 125 EV |
11 | Porer Frequency Withstand Voltage (1 min.50 Hz) |
50 KV |
12. 13. |
Rat io: 11kV Feeder Prinary |
200/5A Single Winding |
14. | Secondary | Single Winding |
15. | Accuracy Class | 0.2/025 for Measurenent |
16 | Bur den a)for Measurement |
. 10-15 VA |
17. | Short Time Current Rating | Minimum 80 kA for 1 Sec |
18. | Extended Curent Rating | 120%of Rated Current |
19. | Creepage Distance | 28 mm/KV(minimum) |
20. | Standard | Design,Manufacture,Testing,Installation and Performance shall be in accordance to the lateat editions of IEC 61869-1 RIEC 61869-2 |
