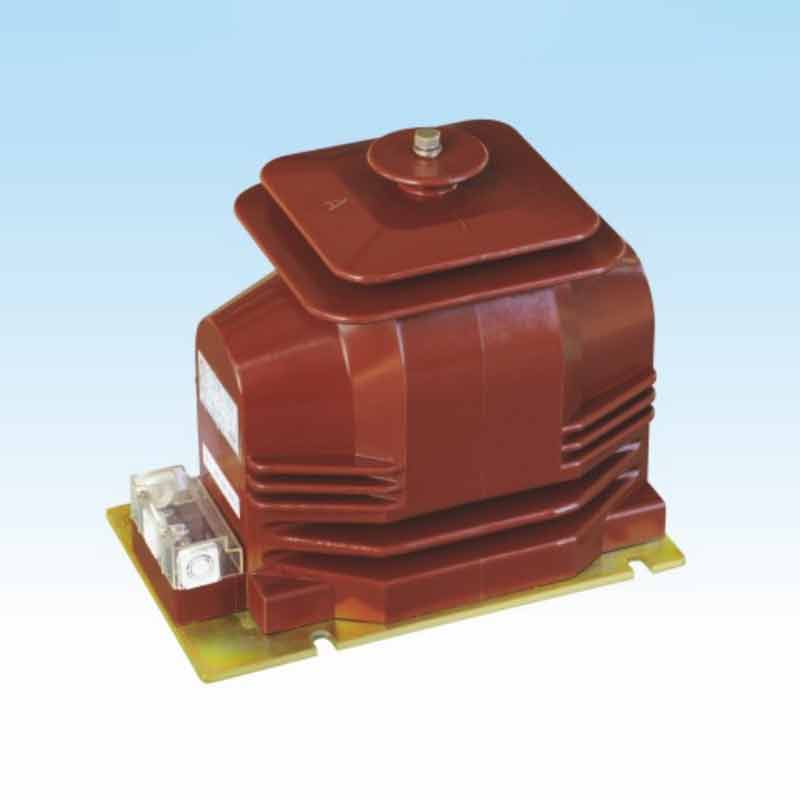

24 kV Voltage Transformer
CHENGHE Electric is one of the professional 24 Kv Voltage Transformer manufacturer and supplier in China. Our products are CE certified and have in stock of factory, welcome to wholesale 24 Kv Voltage Transformer from us.
Description
Product Description
CHENGHE Electric is one of the professional 24 Kv Voltage Transformer manufacturer and supplier in China. Our products are CE certified and have in stock of factory, welcome to wholesale 24 Kv Voltage Transformer from us.
Type description
Technical data
| Type | Rated voltage
ratio(kV) |
Rated secondary output(VA) | Max.output
(VA) |
Ratedinsula-tionlevel(KV) | ||||||
| 0.2 | 0.5 | 1 | 0.210.2 | 0.2/0.5 | 0.5105 | 6P | ||||
| JDZX11-15 | 15//3/0.1//310.1/3 | 30 | 80 | 150 | / | / | / | 100 | 400 | 18/55/105 |
| JDZX11-20 | 20//310.1//310.1/3 | 24/65/125 | ||||||||
| JDZX11-15 | 15//3/0.1//3/0.1//310.1/3 | / | / | / | 15/15 | 20/20 | 30/30 | 300/300 | 18/55/105 | |
| JDZX11-20 | 20//3/0.1//310.1//3/0.1/3 | 24/65/125 | ||||||||
Overall dimension drawing
