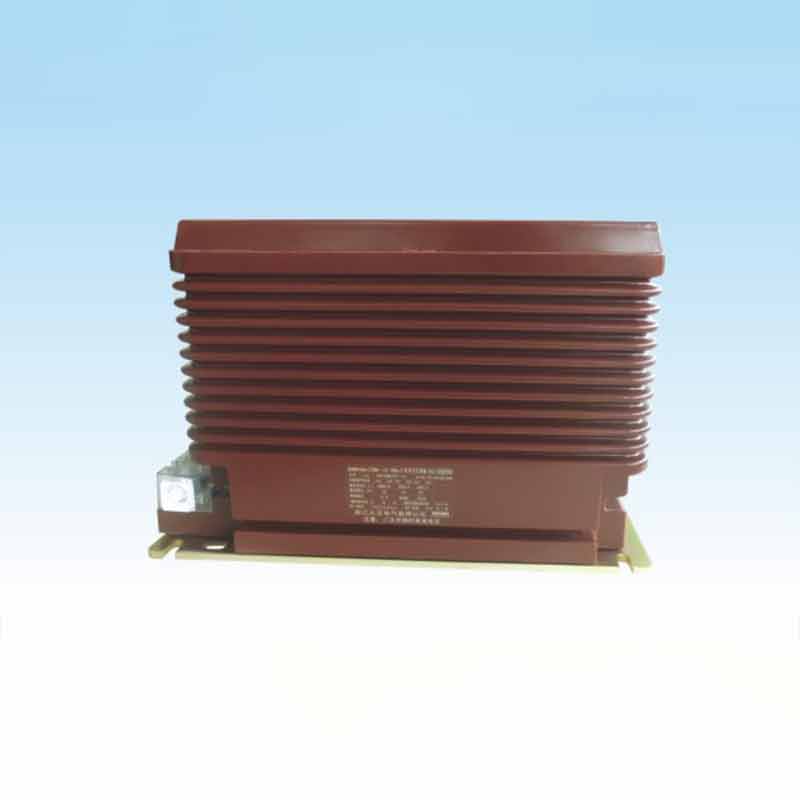

22kV Current Transformer
Find a huge selection of 22 Kv Current Transformer from China at CHENGHE Electric.
Description
Product Description
Find a huge selection of 22 Kv Current Transformer from China at CHENGHE Electric.
Type description
Technical data
| Rated primary
current(A) |
Accuracy classes
combination |
Rated secondary output(VA) | 1s thermal current (kA) | Rated dynamic current (kA) | |||
| 0.2(S) | 0.5(S) | 10P10 | 10P15 | ||||
| 20-150 | 0.2(S)0.2
0.2(S/0.5 0.2(S)Y/10P10 0.5(SY10P10 0.2(S)/10P15 0.5(S)/10P15 |
10
|
15
|
15
|
15
|
15011n | 375l1n |
| 200 | 31.5 | 80 | |||||
| 300-500 | 45 | 112.5 | |||||
| 600、800 |
15
|
20
|
20
|
15
|
63 | 130 | |
| 1000、1200 | 80 | 160 | |||||
Overall dimension drawing
