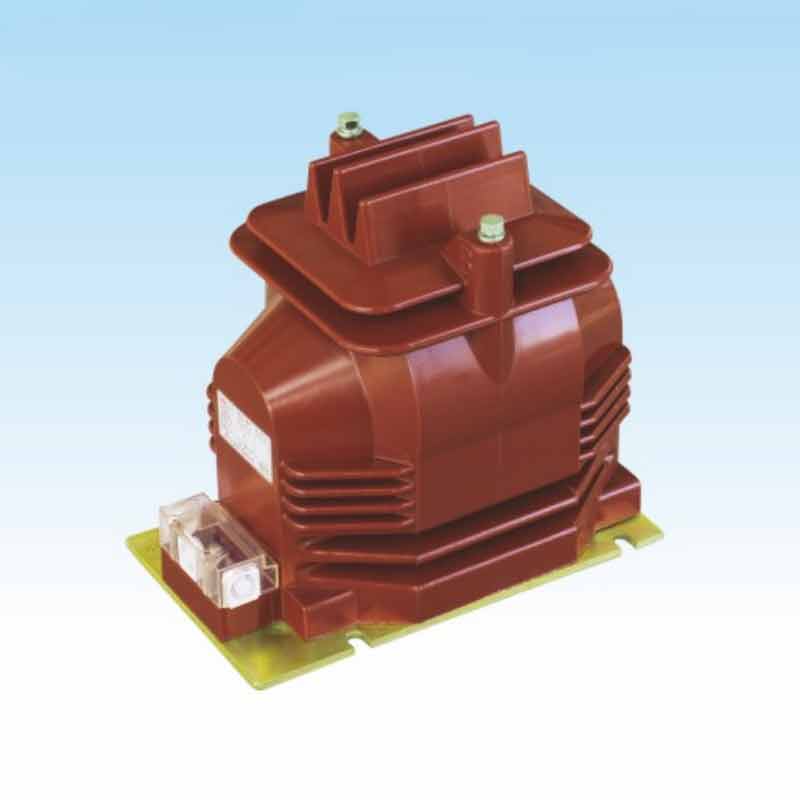

22 kV Voltage Transformer
One of the Chinese companies offering 22 Kv Voltage Transformer for wholesale is CHENGHE Electric.
Description
Product Description
One of the Chinese companies offering 22 Kv Voltage Transformer for wholesale is CHENGHE Electric.
Type description
Technical data
| Type | Rated voltage
ratio(kV) |
Rated secondary output(VA) | Max.output
(VA) |
Ratedinsula-tionlevel(KV) | ||||||
| 0.2 | 0.5 | 1 | 0.2/0.2 | 0.2/0.5 | 0.5/0.5 | 6P | ||||
| JDZ11-15 | 15/.01 | 30 | 80 | 200 | / | / | / | / | 500 | 18/55/105 |
| JDZ11-20 | 20/0.1 | 24/65/125 | ||||||||
| JDZ11-15 | 15/0.1/0.1 | / | / | / | 20/20 | 20/30 | 30/30 | / | 300 | 18/55/105 |
| JDZ11-20 | 20/0.1/0.1 | 24/65/125 | ||||||||
| JDZX11-15G | 15//3/0.1//3/0.1/3 | 20 | 60 | 120 | / | / | / | 100 | 400 | 18/55/105 |
| JDZX11-20G | 20//310.1//310.1/3 | 24/65/125 | ||||||||
| JDZX11-15G | 15//310.11/310.1//3/0.1/3 | / | / | / | 15/15 | 15/20 | 40/40 | 300/300 | 18/55/105 | |
| JDZX11-20G | 20//310.1//310.1//310.1/3 | 24/65/125 | ||||||||
Overall dimension drawing
