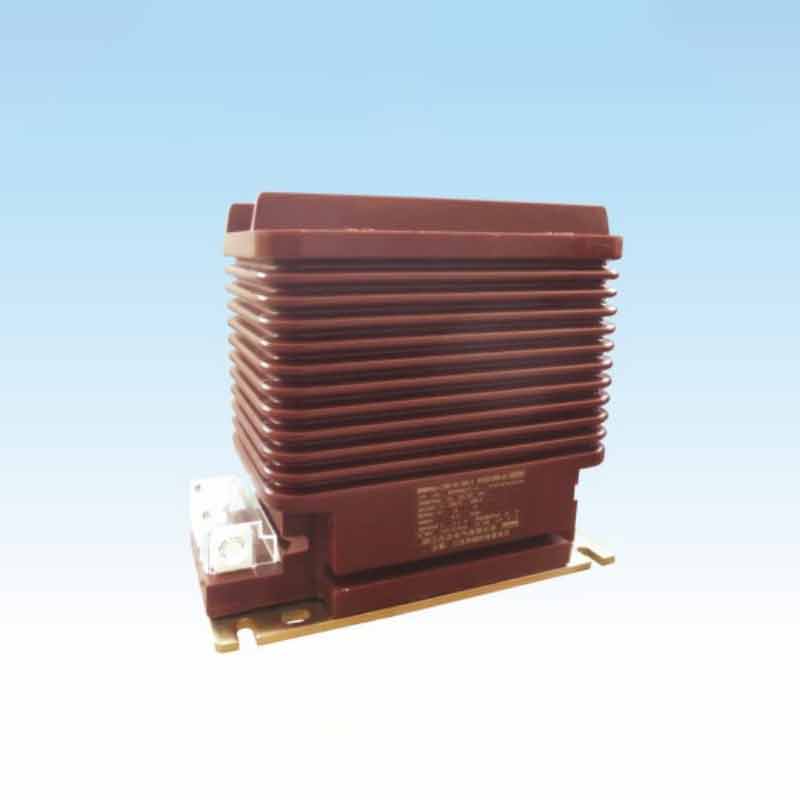

20kV Current Transformer
CHENGHE Electric is one of prominent manufacturer, producer, and exporter of 20 Kv Current Transformer in China.
Description
Product Description
CHENGHE Electric is one of prominent manufacturer, producer, and exporter of 20 Kv Current Transformer in China.
Type description
Technical data
| Rated primary
current(A) |
Accuracy classes
combination |
Rated secondary output(VA) | 1s thermal current
(kA) |
Rated dynamic current
(kA) |
|||
| 0.2(S) | 0.5(S) | 10P10 | 10P15 | ||||
| 20-150 | 0.2(S/0.2
0.2(S)0.5 0.2(S)/10P10 0.5(SY10P10 0.2(S)/10P15 0.5(S/10P15 |
10
|
10
|
15
|
10
|
15011n | 37511n |
| 200 | 31.5 | 80 | |||||
| 300-500 | 45 | 112.5 | |||||
| 600、800 |
15
|
20
|
20
|
15
|
63 | 130 | |
| 1000、1200 | 80 | 160 | |||||
Overall dimension drawing
