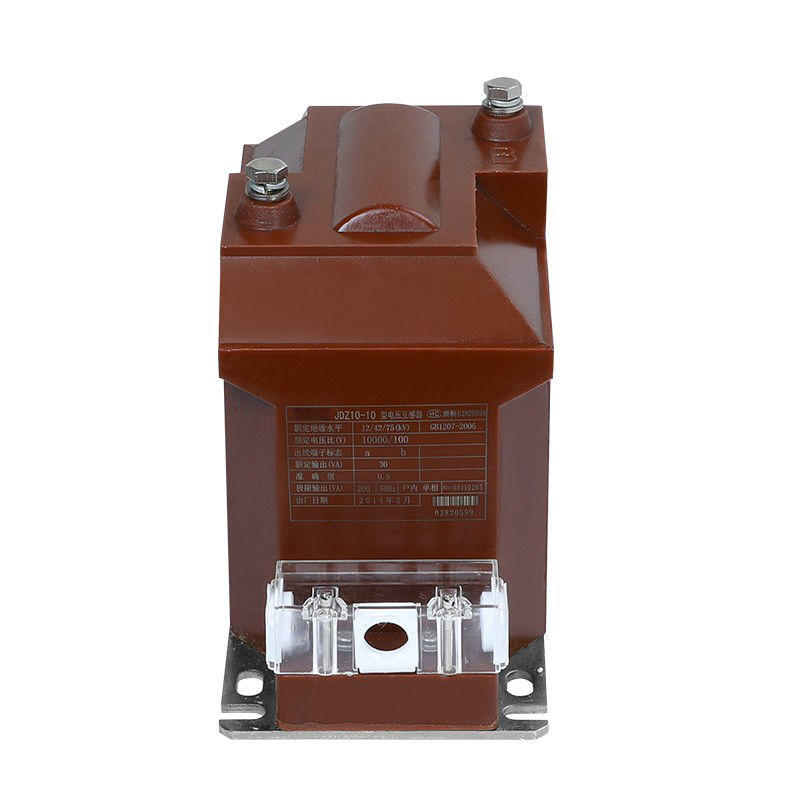

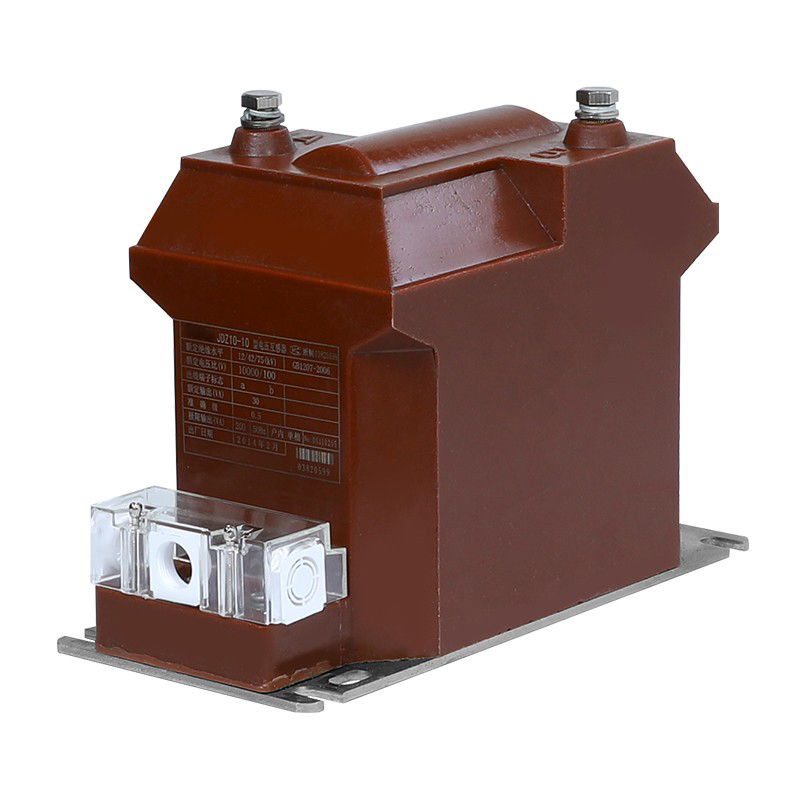

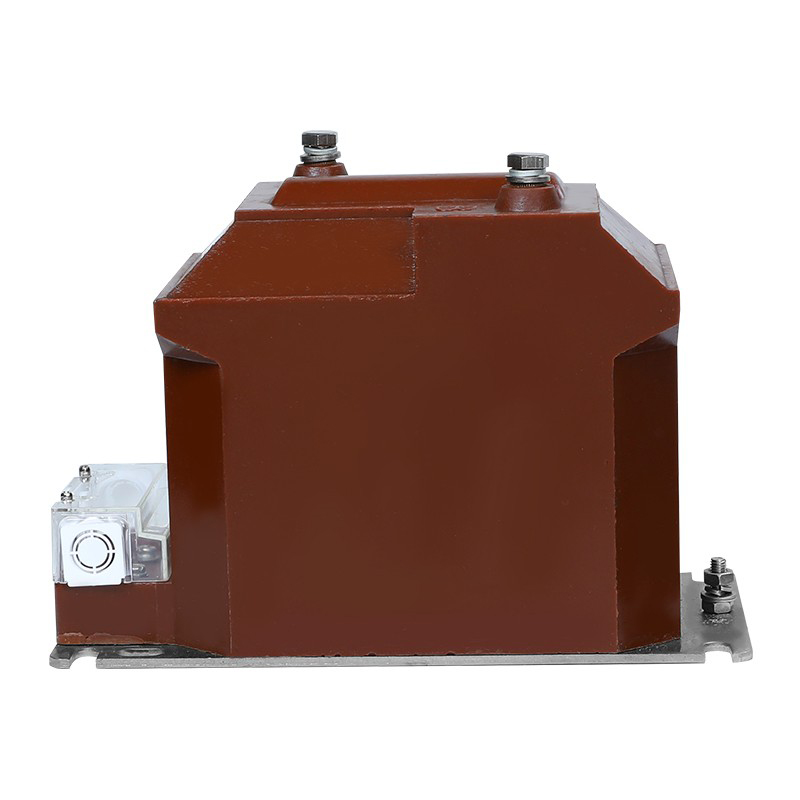

12kV Voltage Transformer
Cold-Rolled Silicon Steel Sheets: 12kV voltage transformer usually uses cold-rolled silicon steel sheets as its core.
Description
Product Description
Cold-Rolled Silicon Steel Sheets: 12kV voltage transformer usually uses cold-rolled silicon steel sheets as its core. These materials are cold-rolled and have excellent magnetic properties, such as high permeability and low core loss, which makes them ideal for current transformers. By using cold rolled silicon steel sheet as the core material, the current transformer can achieve efficient energy transfer, thereby improving the efficiency of the system. Compared to other materials, cold-rolled silicon steel sheets have lower hysteresis loops and magnetization losses, which means less energy waste and lower power consumption.
Epoxy resin: Epoxy resin has excellent dielectric properties and mechanical strength, is the first choice of 12kV voltage transformer insulation material. Epoxy castings provide reliable insulation that protects internal components from electrical breakdown and environmental factors..
Copper : Copper conductors are typically used for windings in 12kV voltage transformer. These materials offer high electrical conductivity and mechanical durability, enabling efficient transmission of current signals while withstanding operational stresses.
Material (Epoxy Resin ): 12kV voltage transformer use enclosures made of epoxy resin, which has excellent insulation properties and can prevent current or voltage crossing for safe circuit operation. It is also resistant to high temperatures and corrosion, and has good sealing performance for waterproof and moisture-proof capabilities. Epoxy transformers are lighter and easier to install and maintain compared to oil-immersed transformers.
Product Superiority
Our product plating of screws and bottom plate reaches 8um/min, which is more moisture-proof and rust-proof. The gloss is better.
| 1. | Application | Metering |
| 2. | Installation | Indoor. |
| 3. | Insulation | Cast Resin |
| 4. | Type | Voltage Induction |
| 5. | Construction | Dry type Epoxy Resin Cast |
| 6. | Number of Phase | Singe Phase(1 set=3 Nos.) |
| 7. | Frequency | 50 Hz |
| 8 | Mounting Mounted | Supporting on Gantry Structure Mounted |
| 9. | System Primary Rated Voltage | 11 kV(Phase to Phase) |
| 10 | System Primary Maximum Voltage | 12 kV(Phase to Phase) |
| 11. | System Earthlings | Effectively earthed |
| 12. | Basic Insulation (Impulse withstand Voltage) |
75 kV |
| 13. | Power Frequency Withstand Voltage | 28 kV |
| 14 | The neutral end of primary winding,for direct connection to ground |
Insulated to withstand the 10 kV low frequency test. |
| 15. | Type of Secondary Winding | Single Winding |
| 16. | Transformation Ratio | 11kVN3/0.11 kVN3 |
| 17. | Creepage Distance | 25 mm/kV(minimum) |
| 18 | Rated Secondary Burden | 7.5 to 10VA |
| 19 | Voltage limit factor | 1.2 continuous and 1.5 for 30 Seconds |
| 20. | Class of Accuracy | 0.2 for metering |
| 21. | Standard | Design,Manufacture,Testing,Installation and Performance shall be in accordance to the latest editions of IEC61869-1&IEC61869-3. |
