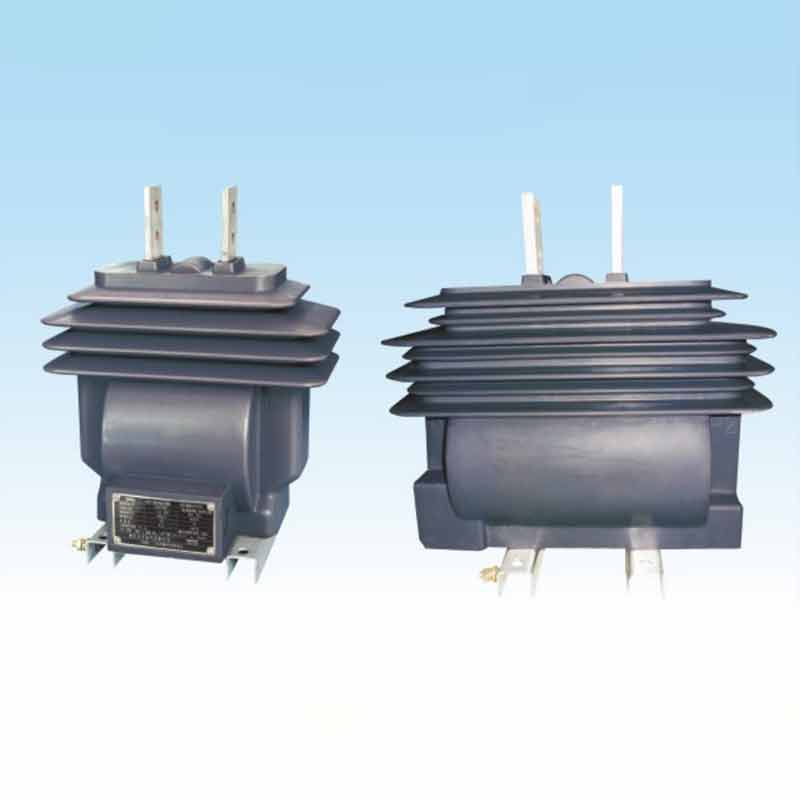

11kV Out Door Current Transformer
If you interested in 11 Kv out Door Current Transformer products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Category: Combined Instrument Transformer
Description
Product Description
If you interested in 11 Kv out Door Current Transformer products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Type description
Technical data
Rated primary
current(A) |
Accuracy classes
combination |
Rated secondary output(VA) | 1s thermal current
(kA) |
Rated dynamic current
(kA) |
||
0.2(S) | 0.5 | 10P15 | ||||
10 | 0.2(S)/10P15
0.5(SY10P15 0.2(Sy0.5/10P15 0.2(S)/10P15/10P15 |
10 | 15 | 15 | 1.44 | 3.6 |
15 | 3 | 7.5 | ||||
20、25 | 4 | 10 | ||||
30 | 6.3 | 15 | ||||
40、50 | 9 | 22.5 | ||||
60 | 12.6 | 31.5 | ||||
75 | 15 | 37.5 | ||||
100 | 18 | 45 | ||||
150 | 25 | 55 | ||||
200 | 50 | 110 | ||||
250-600 | 60 | 130 | ||||
750-1000 | 80 | 160 | ||||
1200-1500 | 100 | 160 |
Overall dimension drawing
