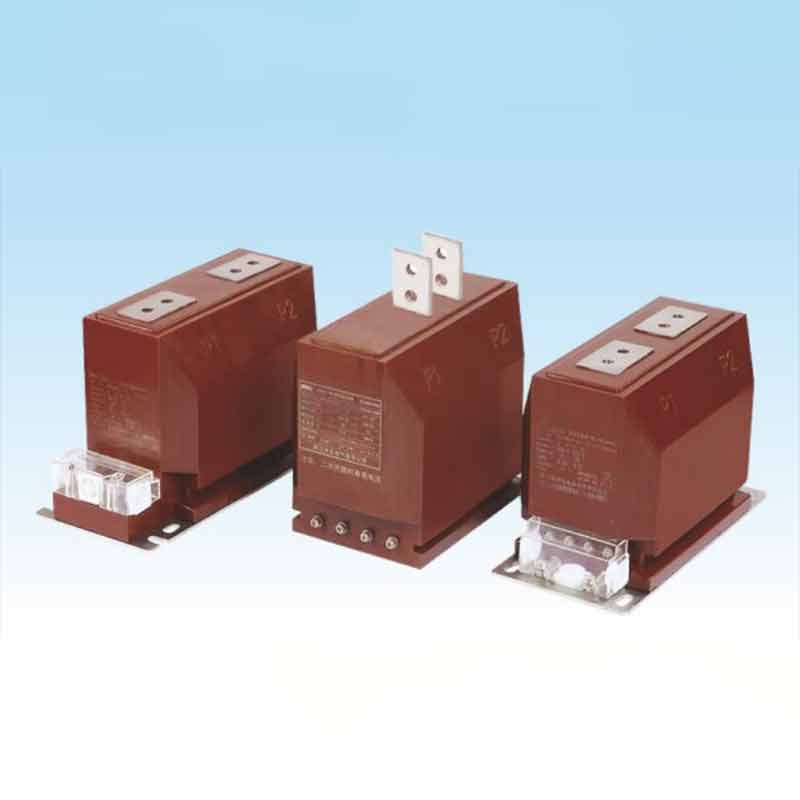

11kV Current Transformer
CHENGHE Electric, a reputable manufacturer in China, is willing to offer you 11KV Current Transformer. We promise to provide you with the best after-sale support and prompt delivery.
Description
Product Description
CHENGHE Electric, a reputable manufacturer in China, is willing to offer you 11KV Current Transformer. We promise to provide you with the best after-sale support and prompt delivery.
Type description
Technical data
| Rated primary
curre-nt(A) |
Accuracy
classes combination |
Rated secondary output(VA) | 1s thermal current(kA) | Rated dynamic current(kA) | ||
| 0.2S(0.2) | 0.5S(0.5) | 10P10 | ||||
| 5 | 0.2S/10P10 0.5S/10P10 0.2/10P10 0.5/10P10 | 10 | 10 | 15 | 1.8 | |
| 10 | 93 | 3.6 | ||||
| 15 | 2 | 5 | ||||
| 20 | 3 | |||||
| 25 | 4 | 78 | ||||
| 5 | 12.5 | |||||
| 40 | 28 | |||||
| 50 | ||||||
| 40.5 | ||||||
| 150 | 80 | |||||
| 200 | 45 | 100 | ||||
| 300 | ||||||
| 400 | ||||||
| 500 | 63 | 130 | ||||
| 600 | ||||||
| 800 | ||||||
| 1000 | ||||||
| 1200 | 80 | 160 | ||||
| 1500 | ||||||
| 2000
2500 2000 JU |
||||||
Overall dimension drawing
