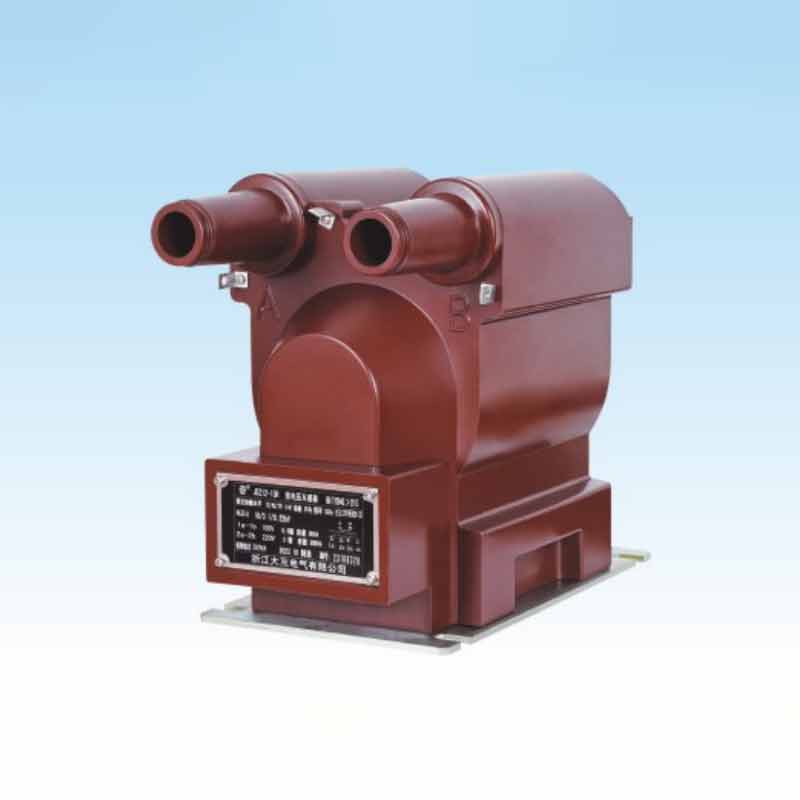

10kV Voltage Transformer

CHENGHE Electric is one of leading China 10 Kv Voltage Transformer manufacturer, suppliers and exporters.

Description

Product Description
CHENGHE Electric is one of leading China 10 Kv Voltage Transformer manufacturer, suppliers and exporters.

Type description

Technical data

Rated voltage ratio

(V)

Ratedsecondaryoutput(VA) Max.output

(VA)

Ratedinsulation

level (kV)

0.2 0.5 Level 1 Level 3 0.2/0.2 0.5/0.5
0.2/0.5
6000/100 30 80 150 250 / / 600 7.2/32/60
10000/100
10000/220
10000/100/100 / / / / 15/15 40/40 300/300 12/42/75
15/20
10000/100/220 / / / / 0.2/3—30/2500.5/3–80/250 300/500

Note:The first wiring point connection mode:JDZ12A-6.10R Fist wiring pomt and 200A Amemcan Type heavy cabre elbow piug cooperate.

Overall dimension drawing
