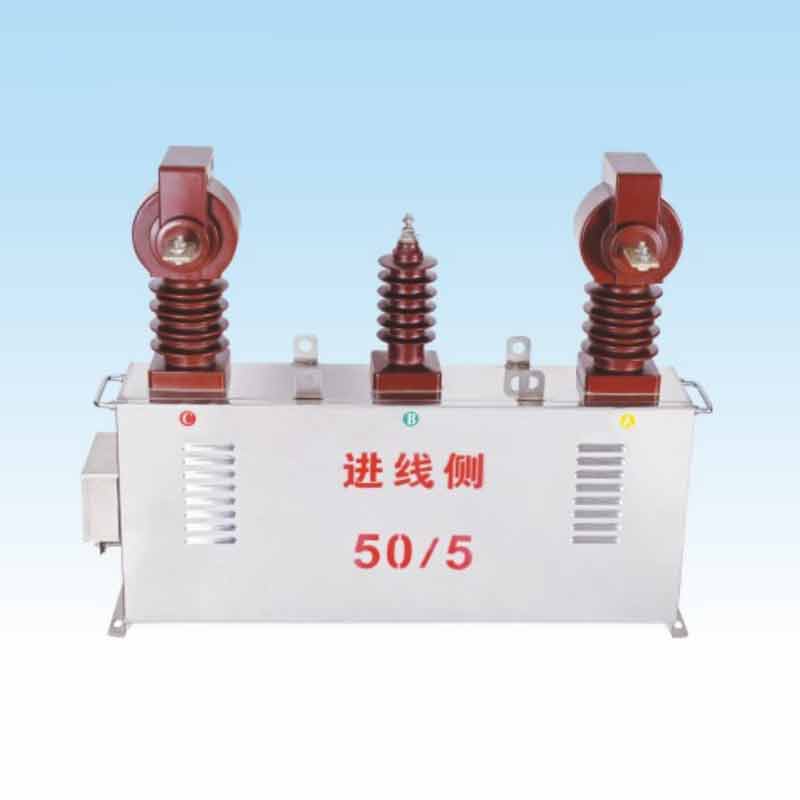

10kV Outdoor Vacuum Circuit Breaker Special Metering Box
CHENGHE Electric is 10Kv outdoor Vacuum Circuit Breaker Special Metering Box manufacturer and supplier in China who can wholesale 10Kv outdoor Vacuum Circuit Breaker Special Metering Box, we can provide professional service and better price for you.
Description
Product Description
CHENGHE Electric is 10Kv outdoor Vacuum Circuit Breaker Special Metering Box manufacturer and supplier in China who can wholesale 10Kv outdoor Vacuum Circuit Breaker Special Metering Box, we can provide professional service and better price for you.
Type description
Technical data
Parameter voltage
| Rated voltage ratio
(V) |
Rated secondaryoutput
(VA) |
Max.output
(VA) |
Ratedinsulationlevel (kV) |
| 10000/100 | 0.2—2×15 | 2×200 | 12/42/75 |
Parameter of current part
| Rated primarycurrent(A) | Univariate ratio | Ratedsecondaryoutput(VA) | Thermal current
(Validvalue)(kA1s) |
Rated dynamiccurrent
(Peak value)(kA) |
| 0.2S | ||||
| 7.5-15 | 7.5 | 10 | 1.0 | 2.5 |
| 10-20 | 10 | 1.5 | 3.75 | |
| 15-30 | 15 | 2.4 | 6.0 | |
| 20-40 | 20、25 | 3.0 | 7.5 | |
| 25-50 | 30 | 4.5 | 11 | |
| 40-80 | 40 | 8 | 20 | |
| 50-100 | 50 | 9 | 22.5 | |
| 75-150 | 75 | 12 | 30 | |
| 100-200 | 100 | 16 | 40 | |
| 150-300 | 150 | 24 | 60 | |
| 200-400 | 200、250 | 32 | 80 | |
| 300-600 | 300 | 45 | 80 | |
| 400-500 | 400 | 60 | 100 | |
| 500-600 | 500、600 | 80 | 100 |
Overall dimension drawing
