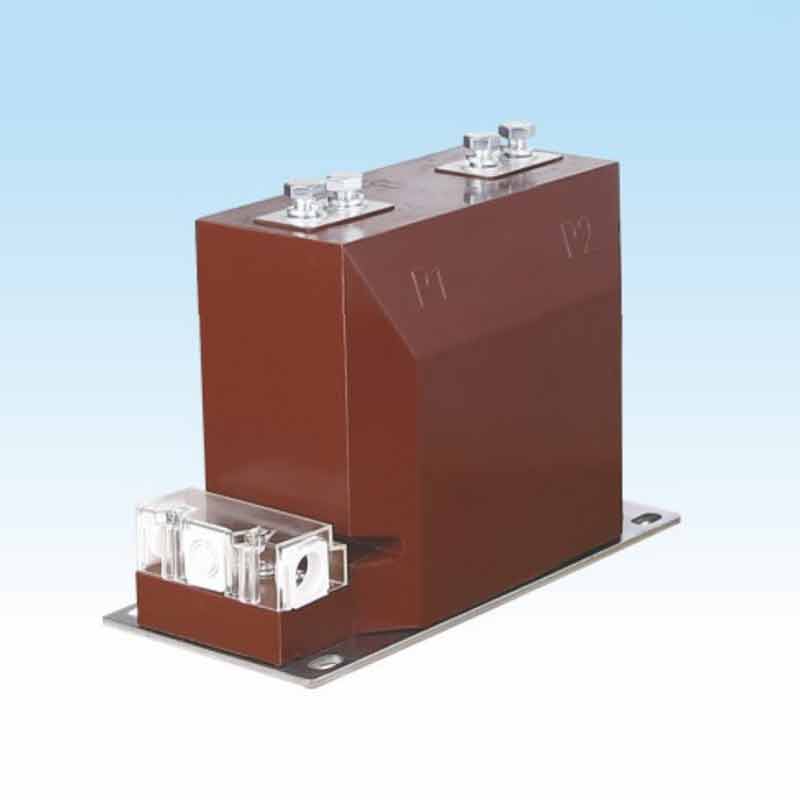

10kV Current Transformer
CHENGHE Electric is a professional manufacturer specialized in producing current/ voltage transformers from 10 Kv Current Transformer.
Description
Product Description
CHENGHE Electric is a professional manufacturer specialized in producing current/ voltage transformers from 10 Kv Current Transformer.
Type description
Technical data
| Rated primary current(A) | Accuracy classes combination | Rated secondary output(VA) | 1s thermal current(kA) | Rated dynamic current(kA) | ||
| 0.2S(0.2) | 0.5S(0.5) | 10P10 | ||||
| 5 | 0.2S/10P10
0.5S/10P10 0.2/10P10 0.5/10P10
|
10 | 10 | 15 | 0.75 | 1.8 |
| 10 | 1.44 | 3.6 | ||||
| 15 | 2 | 5 | ||||
| 20 | 3 | 7.5 | ||||
| 25 | 4 | 10 | ||||
| 30 | 5 | 12.5 | ||||
| 40 | 6.3 | 15 | ||||
| 50 | 8.1 | 20 | ||||
| 75 | 16.2 | 40.5 | ||||
| 100 | 21.6 | 54 | ||||
| 150 | 36 | 80 | ||||
| 200 | 45 | 100 | ||||
| 300 | ||||||
| 400 | ||||||
| 500 | 63 | 130 | ||||
| 600 | ||||||
| 800 | ||||||
| 1000 | ||||||
Overall dimension drawing
